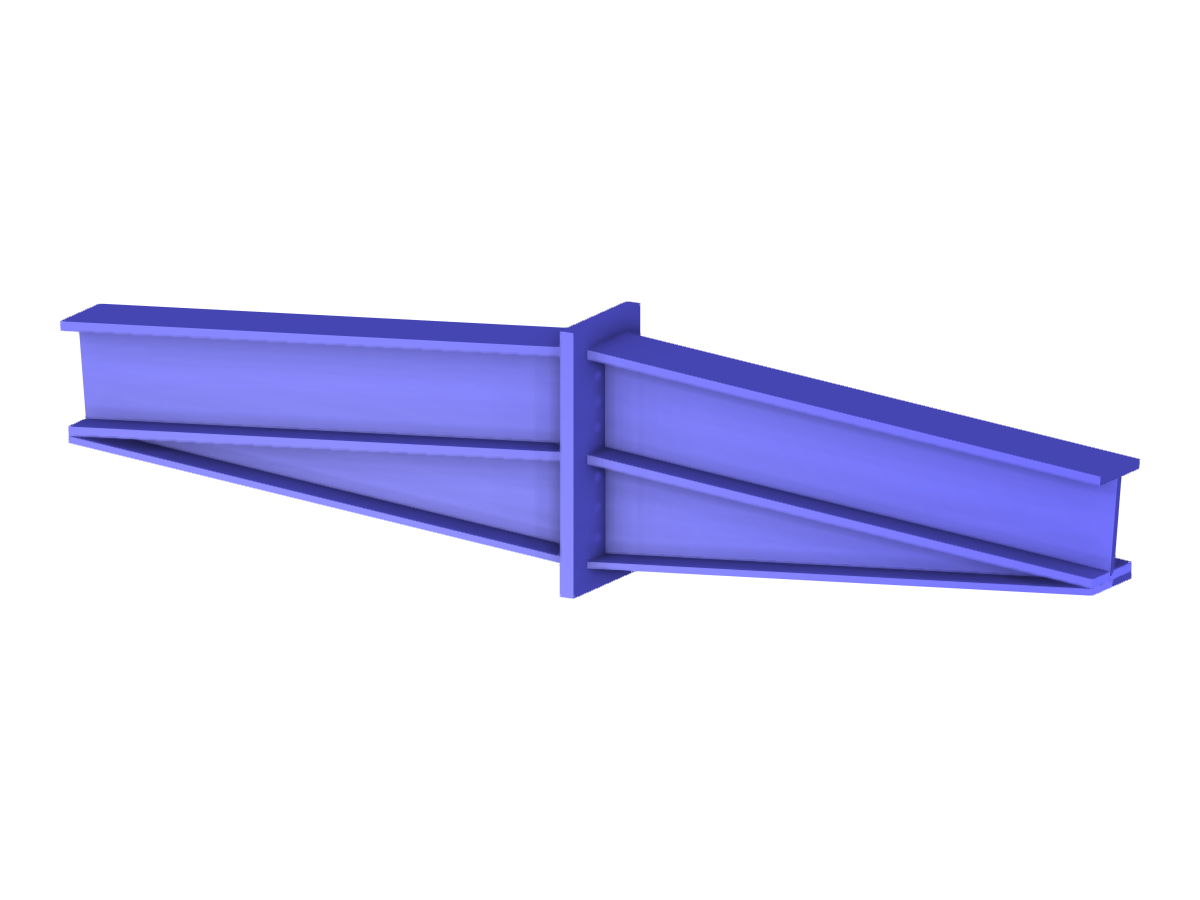

Model 004219 | I-Section Beam Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 94 |
| Number of Lines | 112 |
| Number of Members | 12 |
| Number of Surfaces | 58 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.531 tons |
| Dimensions (Metric) | 3.057 x 0.700 x 0.340 m |
| Dimensions (Imperial) | 10.03 x 2.3 x 1.12 feet |
