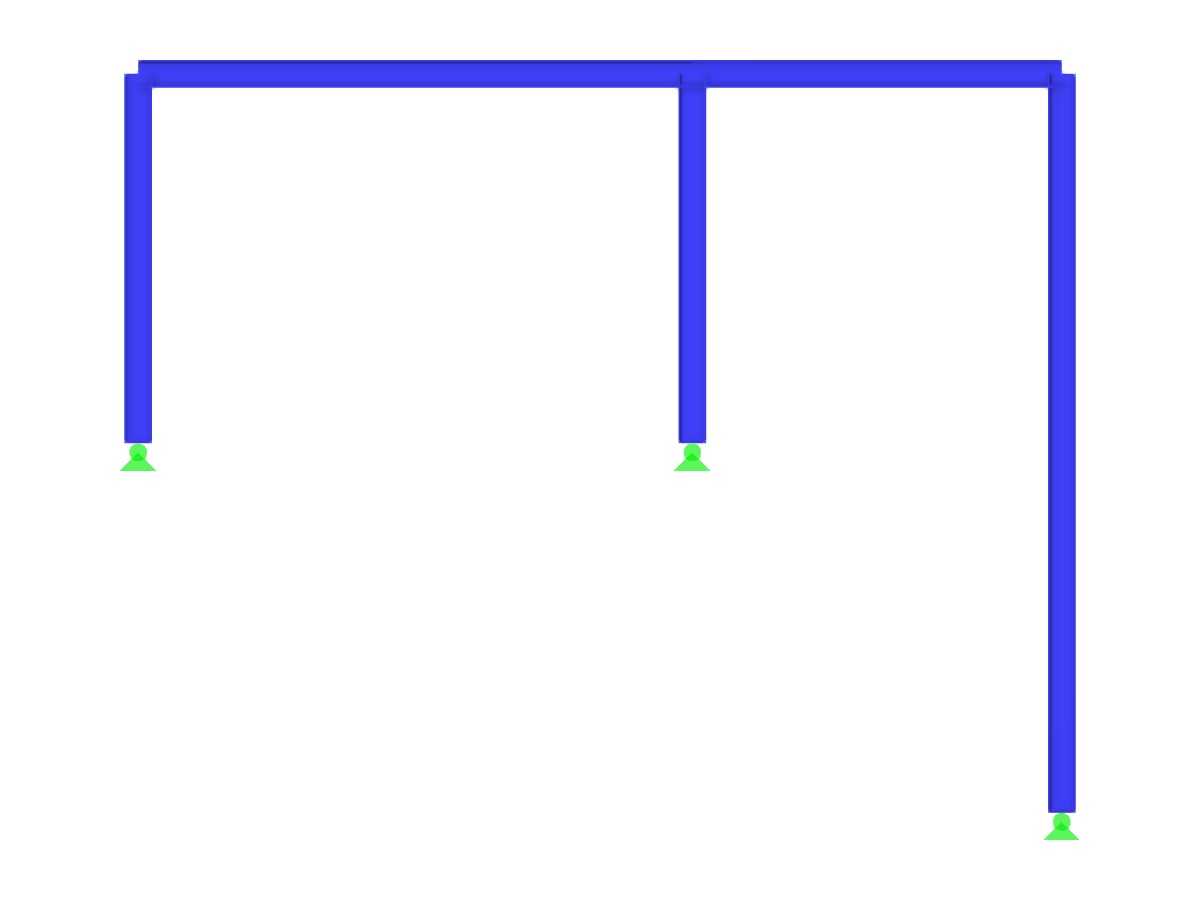

Two-Hinged Frame with Individual Pin-Ended Column in Plane
Steel Frame Structure
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.041 tons |
| Dimensions (Metric) | 10.000 x 8.000 x 0.000 m |
| Dimensions (Imperial) | 32.81 x 26.25 x 0 feet |
