Mesh Structure Quality Evaluation

Visualization of the calculated quality of a network by evaluating criteria.

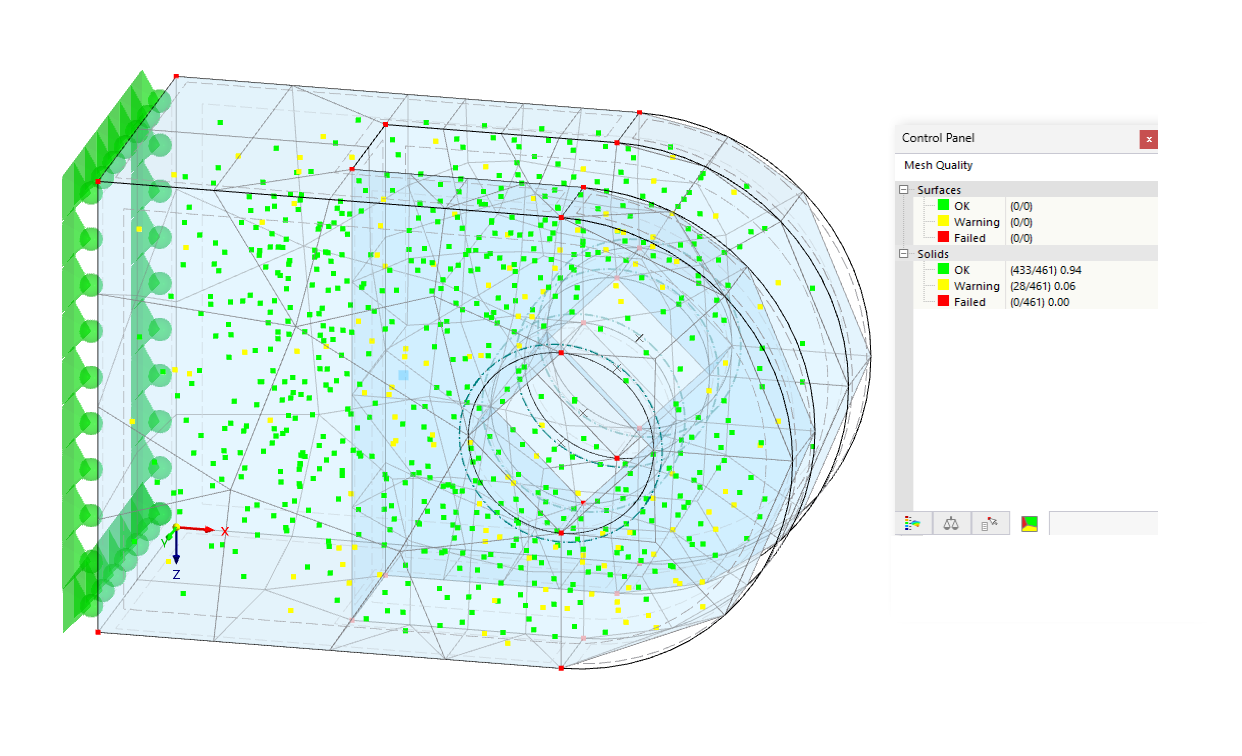

The image shows the mesh quality check of a structural model. The color-coded surfaces provide a clear overview of the local mesh refinement and the evaluation of the element quality. The mesh quality is evaluated visually and quantitatively. The precise mesh quality is crucial for the accuracy of calculation results.
