2024-03-10
041975

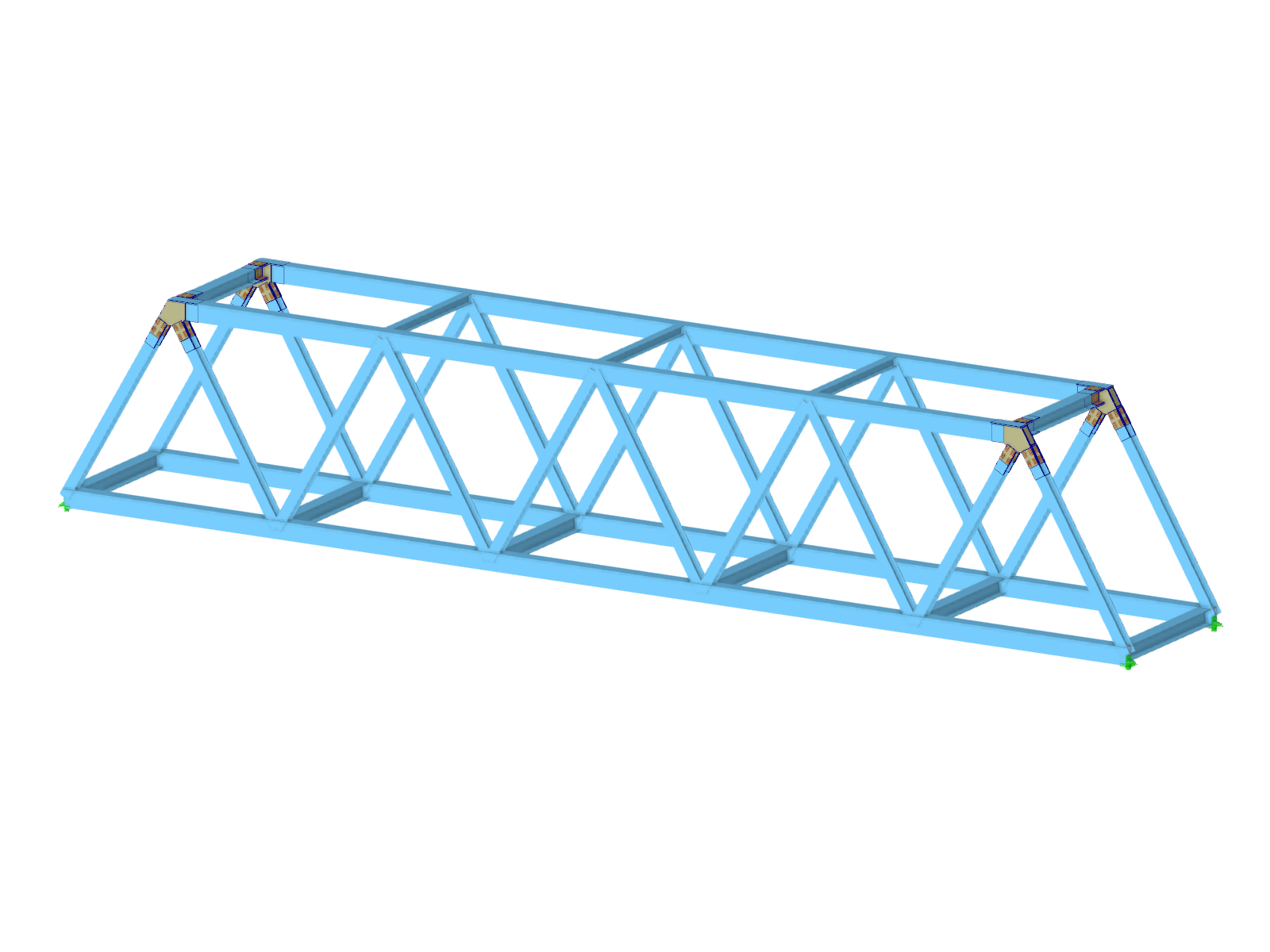

Model 004298 | Steel Truss Bridge
Used in
3D Model
Specifications
| Number of Nodes | 22 |
| Number of Lines | 35 |
| Number of Members | 35 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 25.624 tons |
| Dimensions (Metric) | 25,000 x 4,330 x 3,500 m |
| Dimensions (Imperial) | 82.02 x 14.21 x 11.48 feet |
2024-05-30
041977

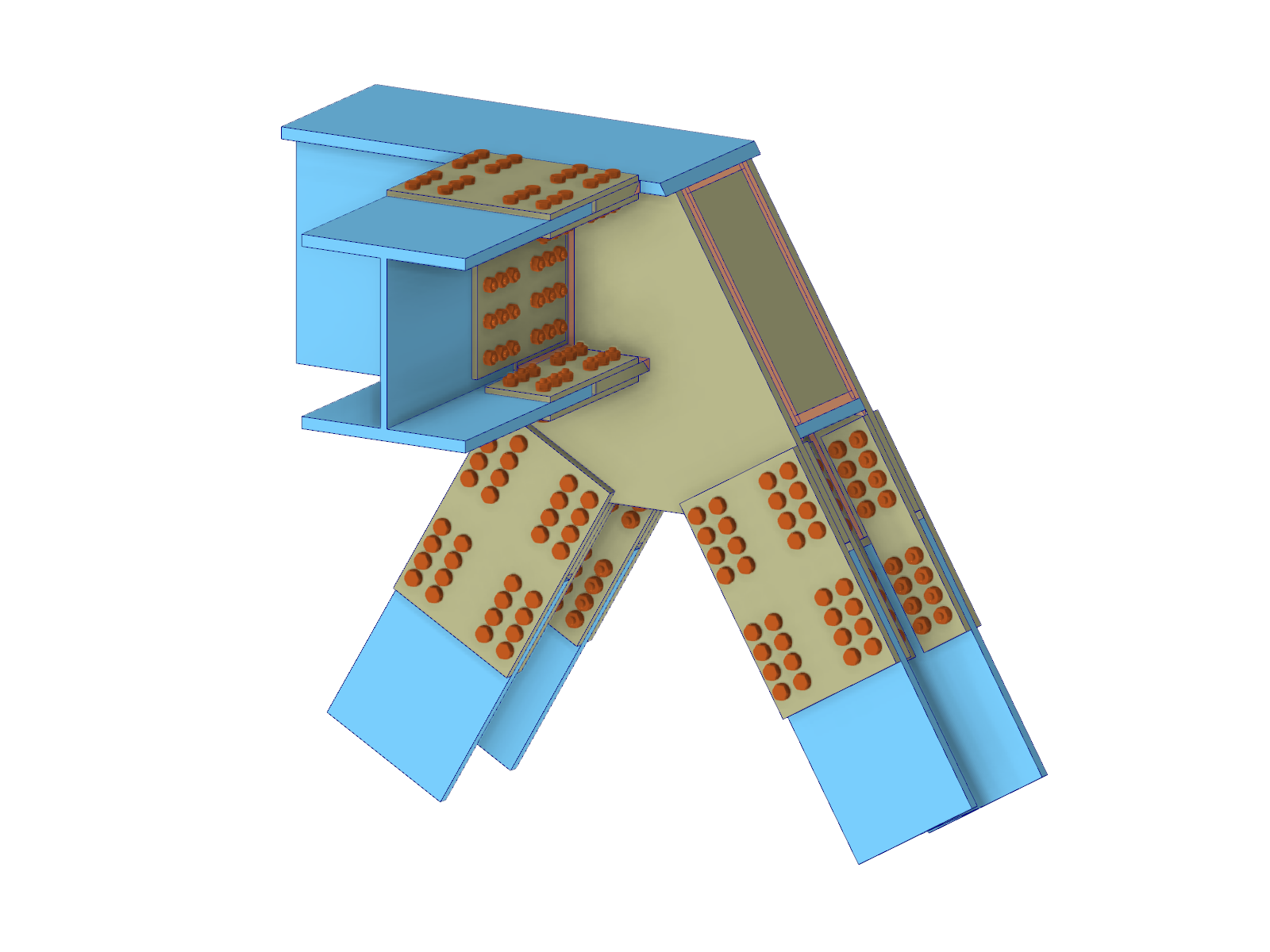

Truss Bridge with Steel Joints | Connection Detail
Truss Bridge with Steel Joints
Used in
3D Model
Specifications
| Number of Nodes | 22 |
| Number of Lines | 35 |
| Number of Members | 35 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 25.624 tons |
| Dimensions (Metric) | 25,000 x 4,330 x 3,500 m |
| Dimensions (Imperial) | 82.02 x 14.21 x 11.48 feet |
