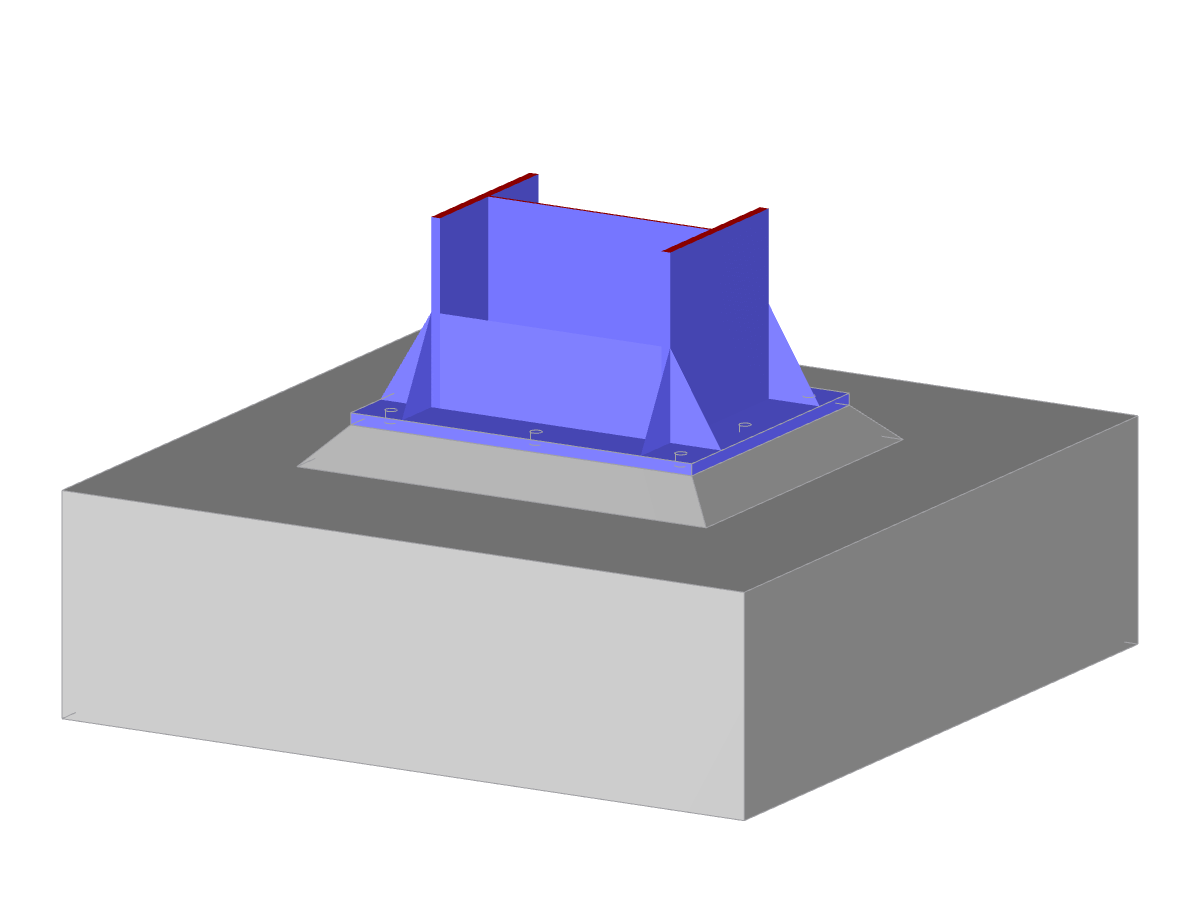

Model 004325 | Anchor Plate with Gussets
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 118 |
| Number of Lines | 111 |
| Number of Members | 17 |
| Number of Surfaces | 53 |
| Number of Solids | 3 |
| Total Weight | 0.835 tons |
| Dimensions (Metric) | 1.000 x 1.000 x 0.616 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 2.02 feet |
| Program Version | 5.27.01 |
