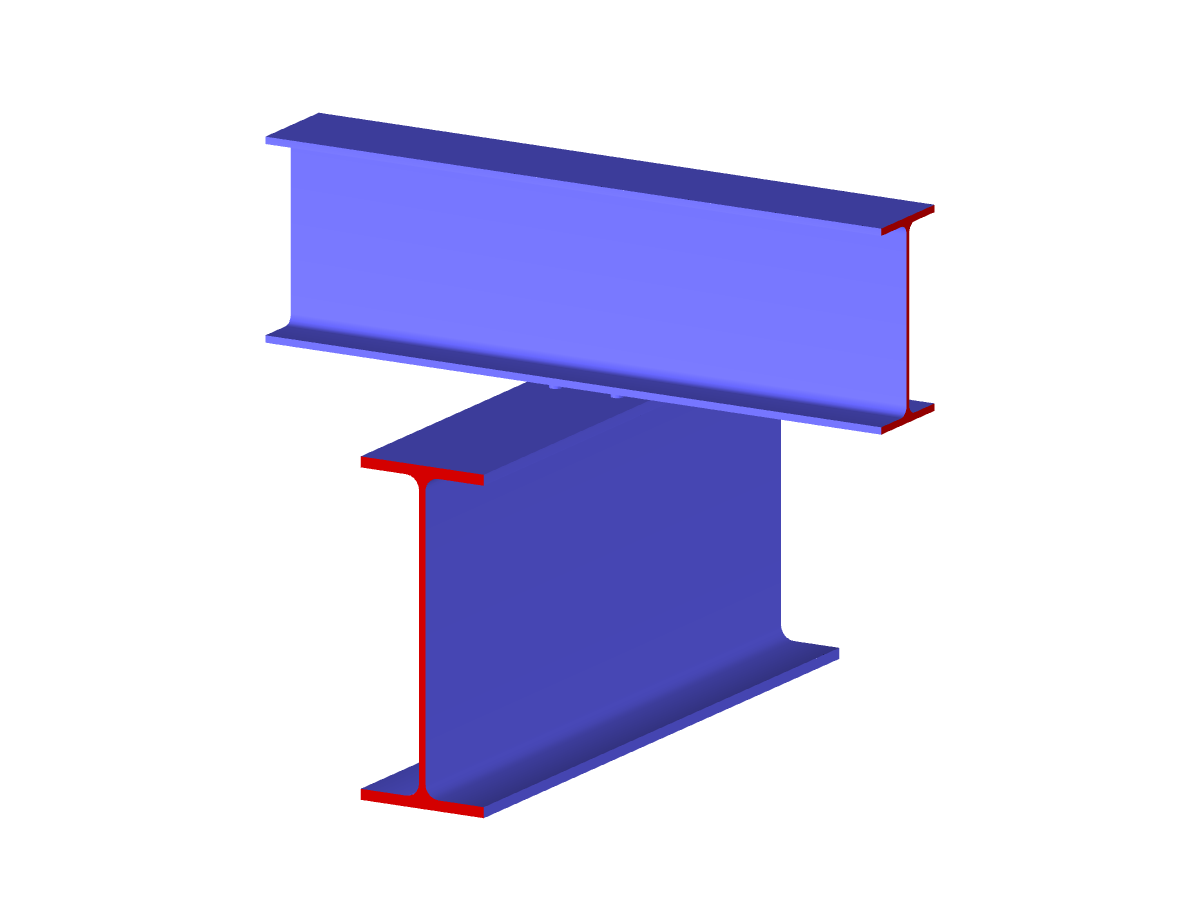

Model 004357 | Beam to Beam Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 84 |
| Number of Lines | 101 |
| Number of Members | 6 |
| Number of Surfaces | 38 |
| Number of Solids | 1 |
| Total Weight | 0.268 tons |
| Dimensions (Metric) | 1.000 x 1.000 x 0.813 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 2.67 feet |
| Program Version | 5.27.01 |
