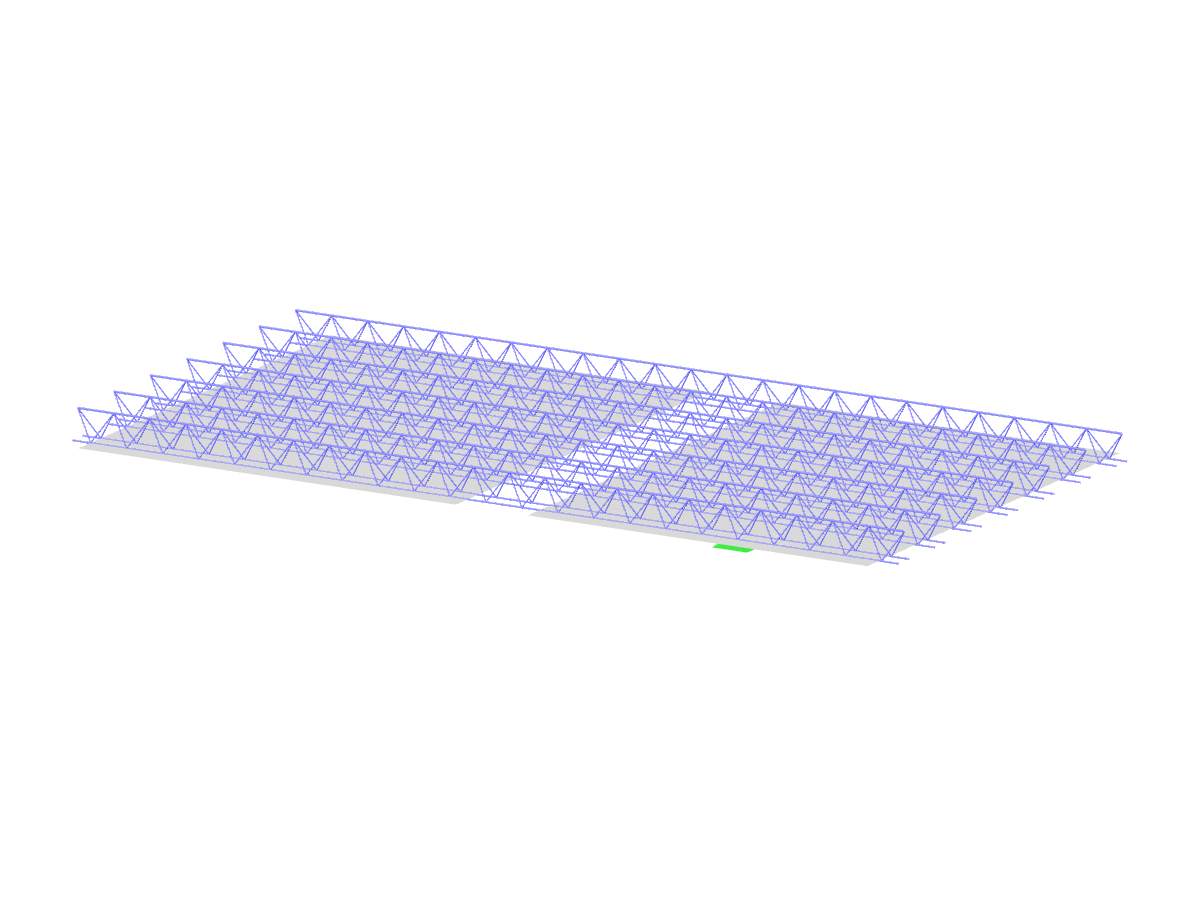

Model 004364 | Cantilevered Slab
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 528 |
| Number of Lines | 1163 |
| Number of Members | 1141 |
| Number of Surfaces | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 2 |
| Total Weight | 1.261 tons |
| Dimensions (Metric) | 4.600 x 2.430 x 0.189 m |
| Dimensions (Imperial) | 15.09 x 7.97 x 0.62 feet |
| Program Version | 5.26.02 |
