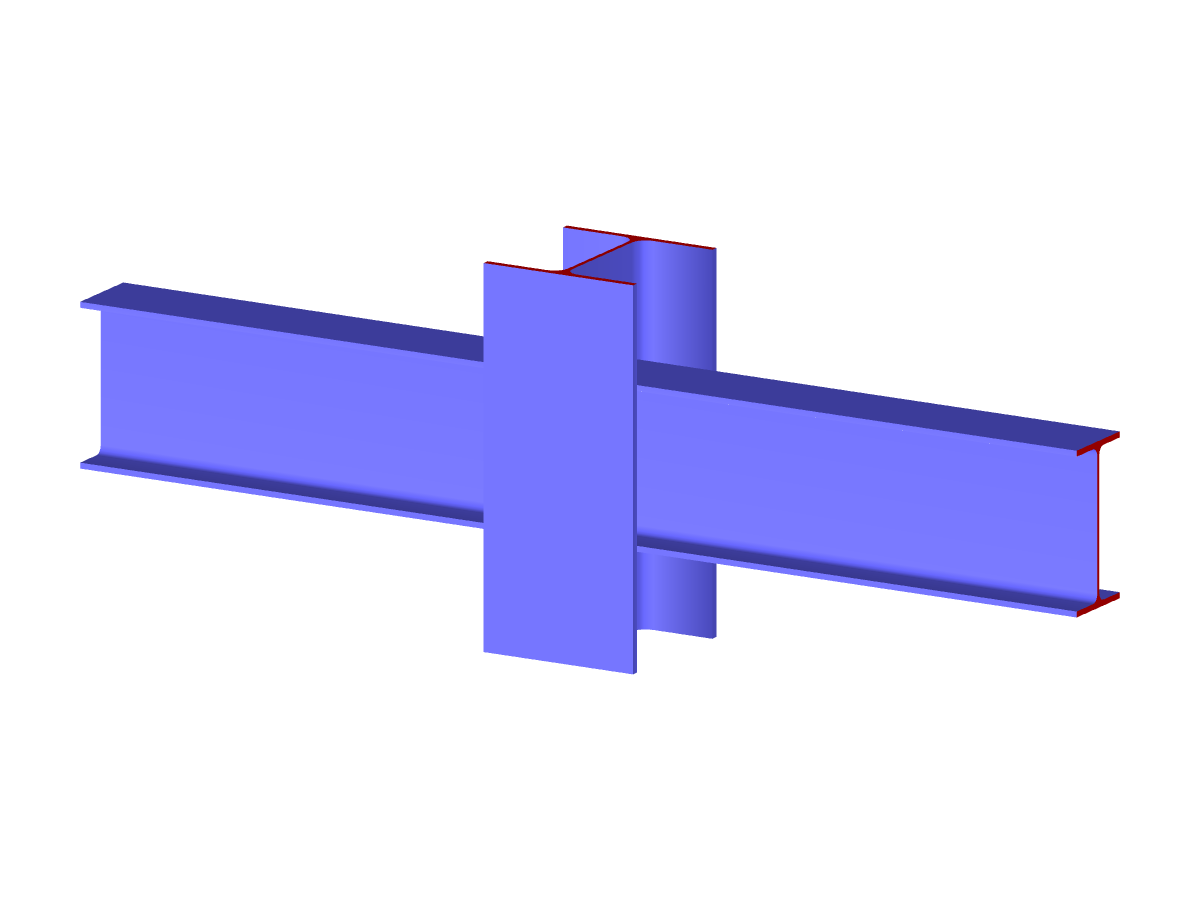

Model 004374 | Hinged Beam-Column Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 282 |
| Number of Lines | 260 |
| Number of Members | 35 |
| Number of Surfaces | 145 |
| Number of Solids | 8 |
| Total Weight | 0.292 tons |
| Dimensions (Metric) | 2.000 x 0.290 x 0.700 m |
| Dimensions (Imperial) | 6.56 x 0.95 x 2.3 feet |
| Program Version | 5.26.02 |
