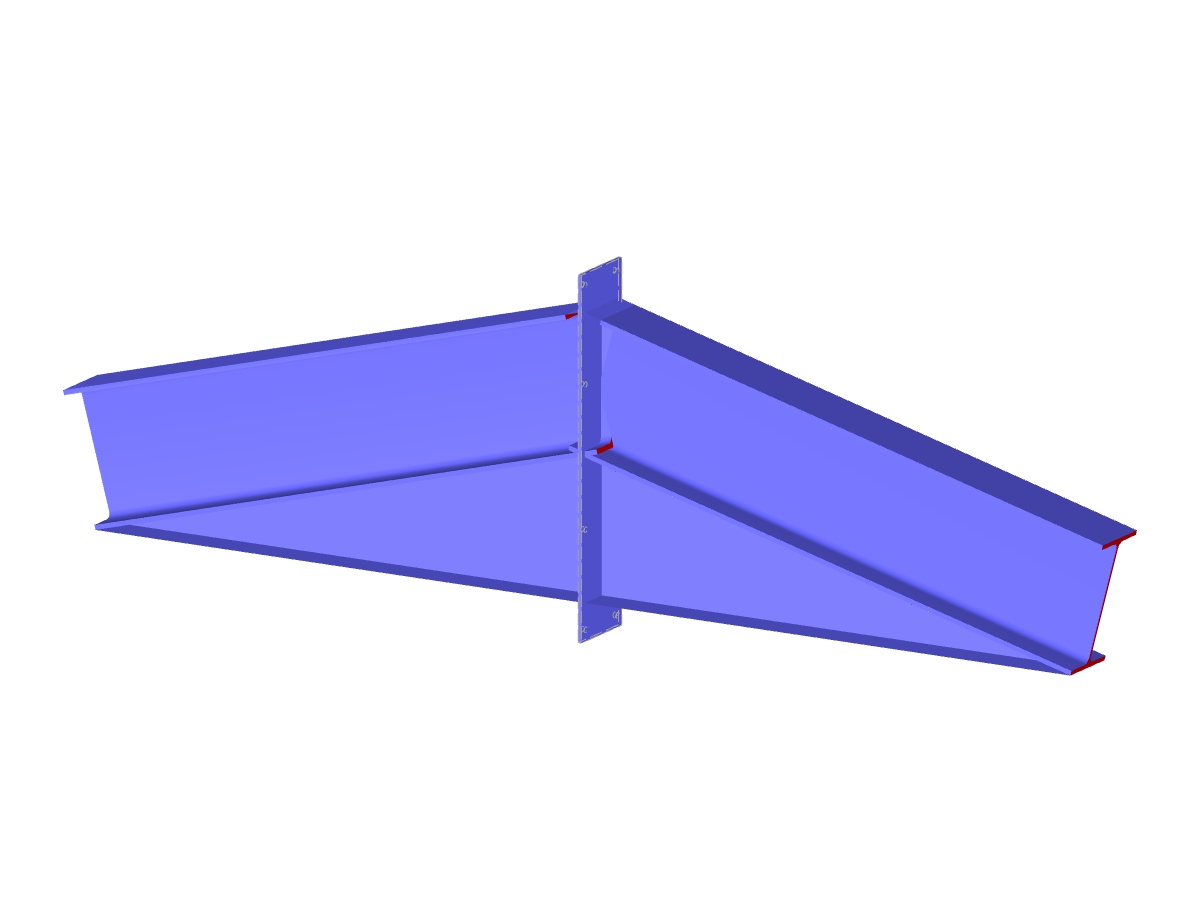

Model 004382 | Console to Ridge Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 107 |
| Number of Lines | 84 |
| Number of Members | 10 |
| Number of Surfaces | 42 |
| Number of Solids | 1 |
| Total Weight | 0.449 tons |
| Dimensions (Metric) | 2.991 x 0.200 x 0.948 m |
| Dimensions (Imperial) | 9.81 x 0.66 x 3.11 feet |
| Program Version | 5.26.02 |
