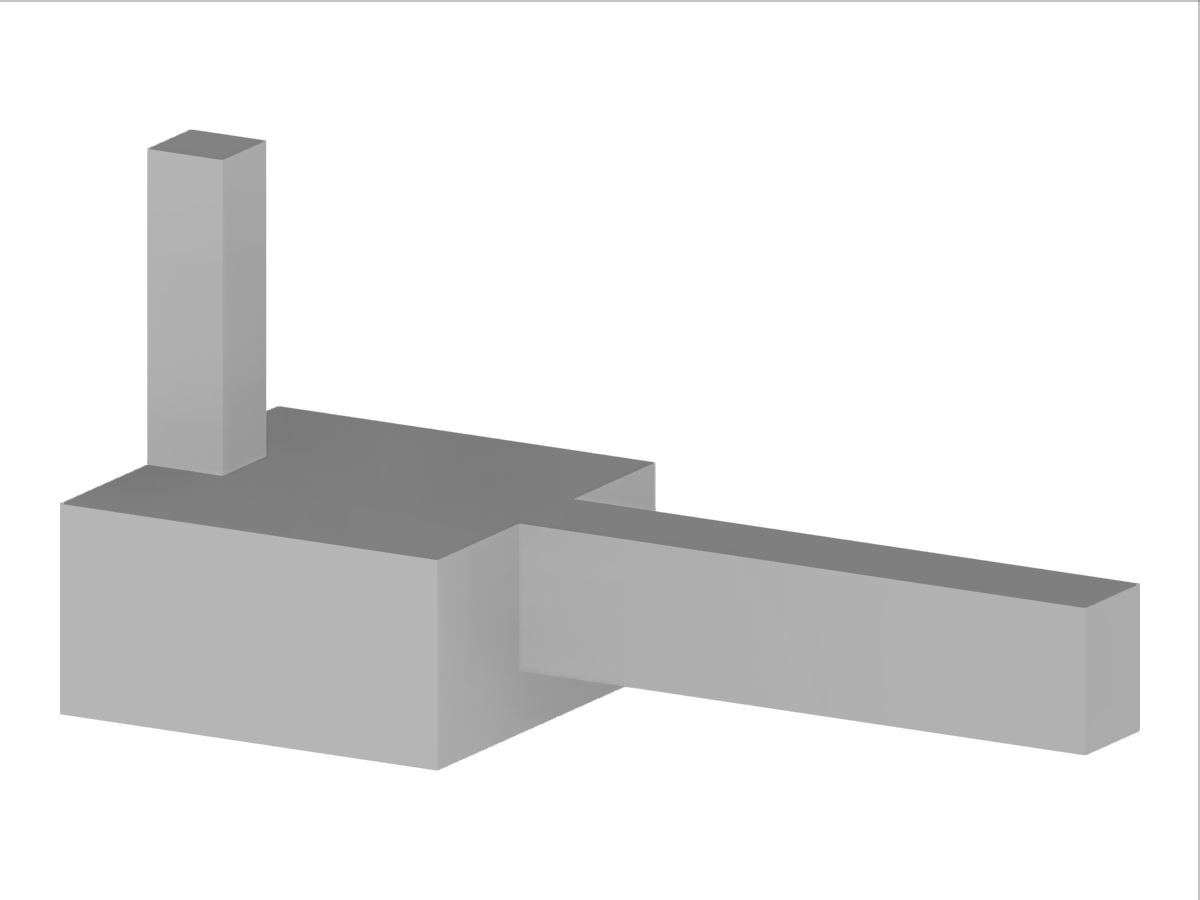

Model 004391 | Braced Footing in Dividing Wall
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 28 |
| Number of Lines | 44 |
| Number of Members | 0 |
| Number of Surfaces | 23 |
| Number of Solids | 4 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 12.202 tons |
| Dimensions (Metric) | 5.000 x 2.500 x 2.000 m |
| Dimensions (Imperial) | 16.4 x 8.2 x 6.56 feet |
