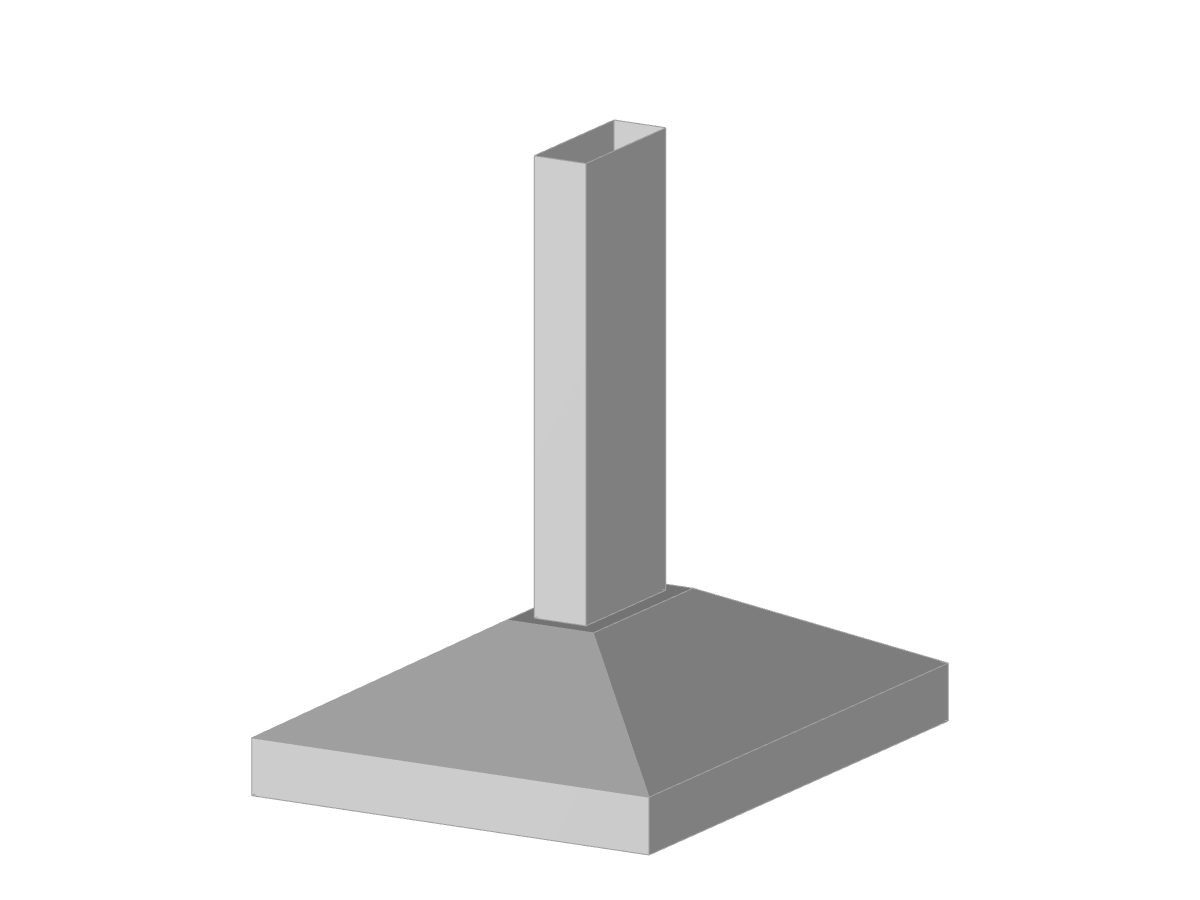

Model 004402 | Isolated Footing
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 27 |
| Number of Lines | 33 |
| Number of Members | 1 |
| Number of Surfaces | 17 |
| Number of Solids | 3 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 11.701 tons |
| Dimensions (Metric) | 2.300 x 3.000 x 3.200 m |
| Dimensions (Imperial) | 7.55 x 9.84 x 10.5 feet |
| Program Version | 5.23.01 |
