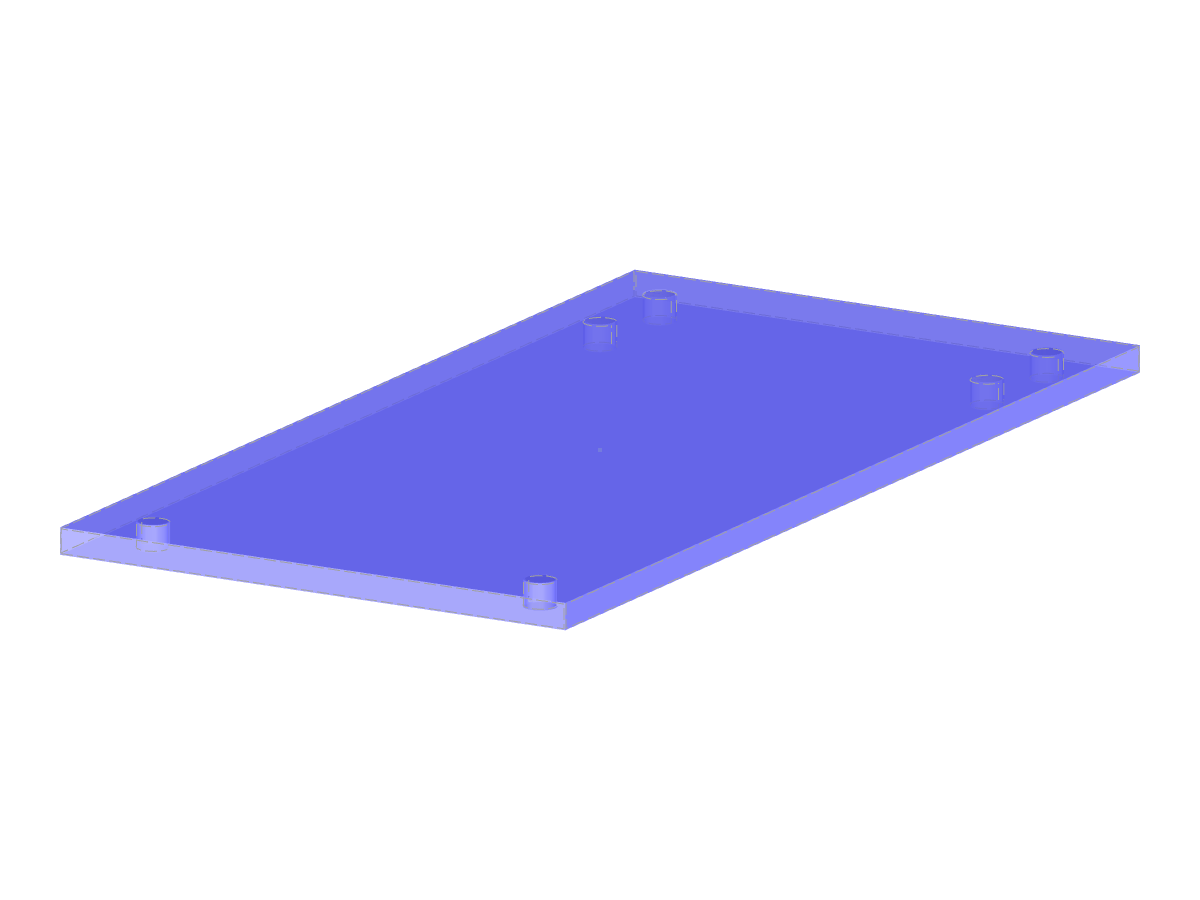

Model 004515 | Insulated Plate with 6 Bolt Holes
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 59 |
| Number of Lines | 38 |
| Number of Members | 6 |
| Number of Surfaces | 24 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.044 tons |
| Dimensions (Metric) | 0.308 x 0.607 x 0.030 m |
| Dimensions (Imperial) | 1.01 x 1.99 x 0.1 feet |
| Program Version | 5.11.02 |
