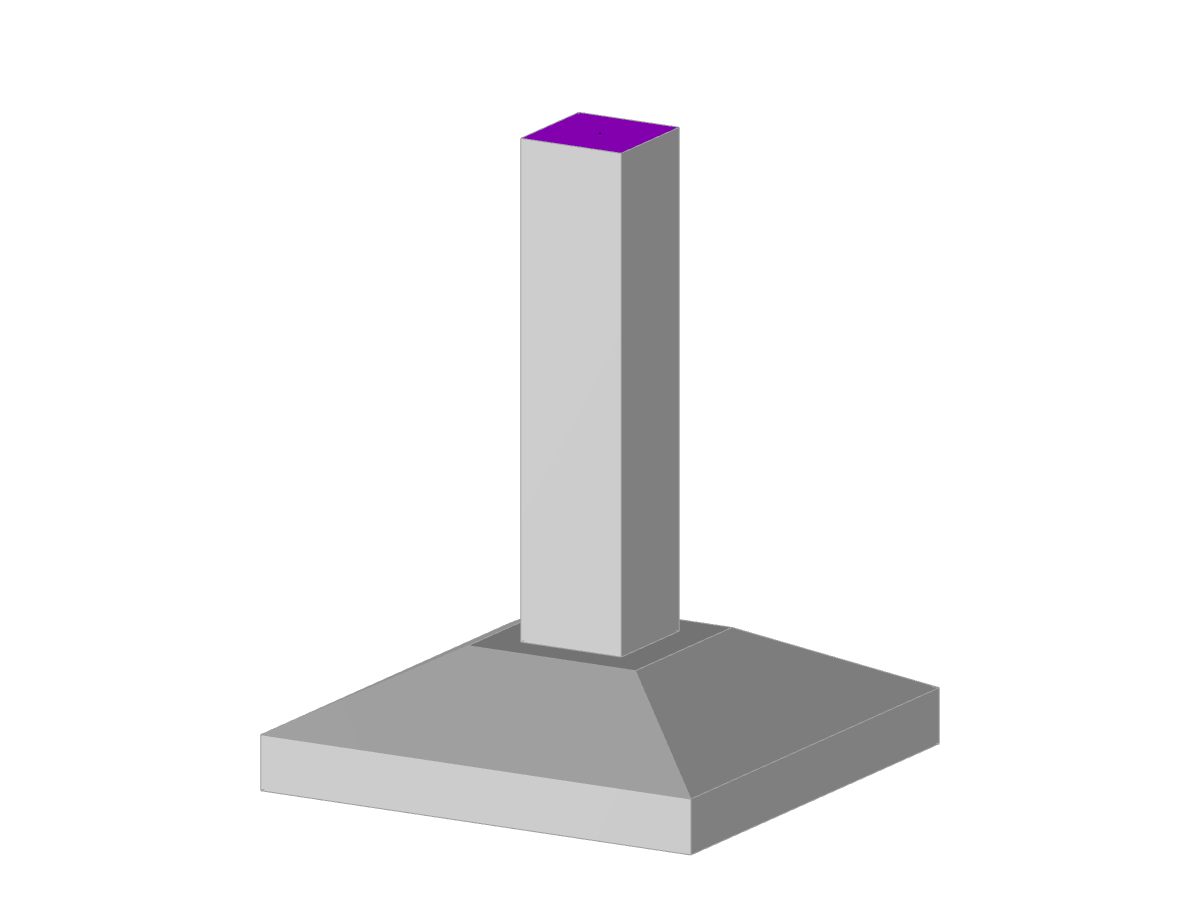

Model 004517 | Isolated Square Footing
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 27 |
| Number of Lines | 33 |
| Number of Members | 1 |
| Number of Surfaces | 17 |
| Number of Solids | 3 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 11.632 tons |
| Dimensions (Metric) | 2.571 x 2.571 x 3.400 m |
| Dimensions (Imperial) | 8.44 x 8.44 x 11.15 feet |
| Program Version | 5.18.01 |
