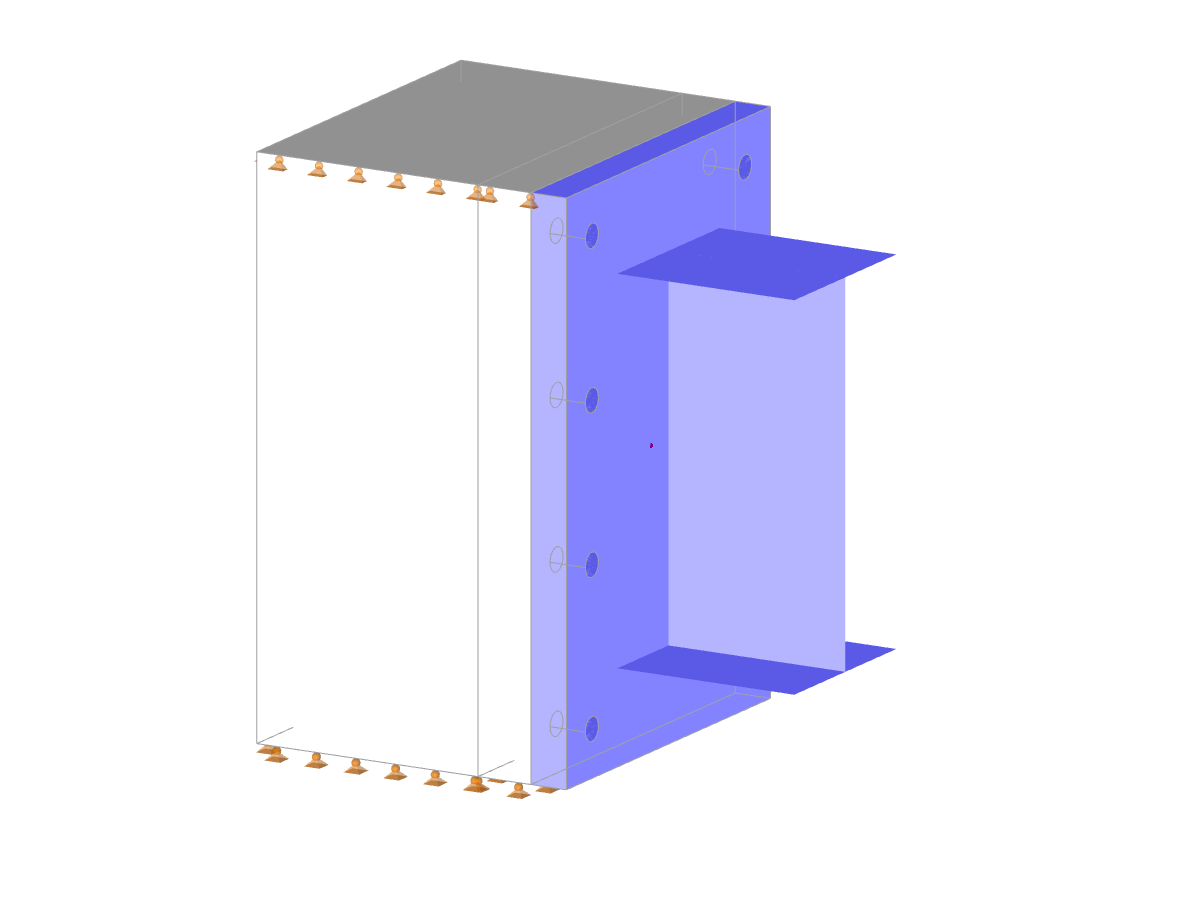

Model 004561 | Anchor Plate for I-Section Beam
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 93 |
| Number of Lines | 80 |
| Number of Members | 8 |
| Number of Surfaces | 44 |
| Number of Solids | 3 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 0.035 tons |
| Dimensions (Metric) | 0.275 x 0.200 x 0.300 m |
| Dimensions (Imperial) | 0.9 x 0.66 x 0.98 feet |
| Program Version | 5.20.02 |
