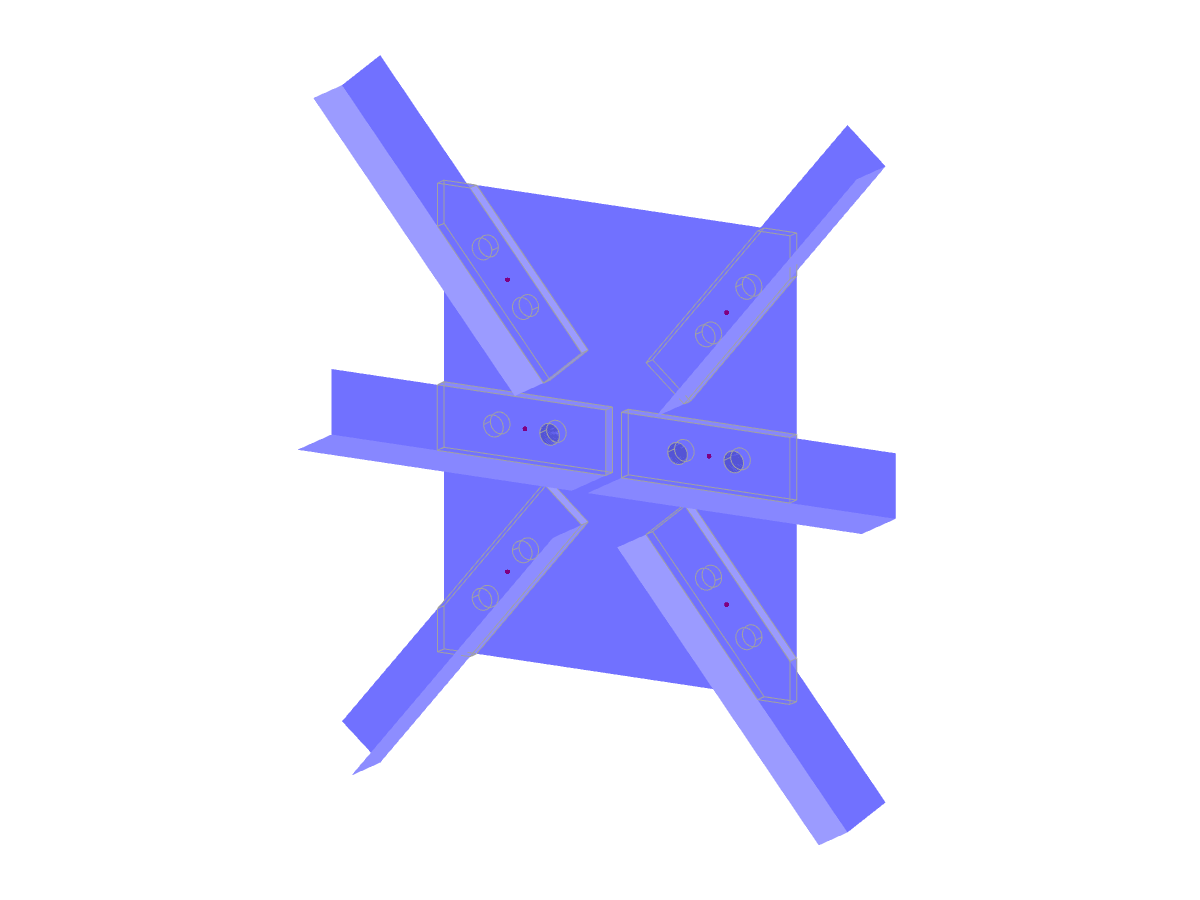

Model 004567 | Connection of Angled Profiles
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 197 |
| Number of Lines | 196 |
| Number of Members | 12 |
| Number of Surfaces | 101 |
| Number of Solids | 6 |
| Total Weight | 0.059 tons |
| Dimensions (Metric) | 0.720 x 0.100 x 0.809 m |
| Dimensions (Imperial) | 2.36 x 0.33 x 2.65 feet |
| Program Version | 5.26.02 |
