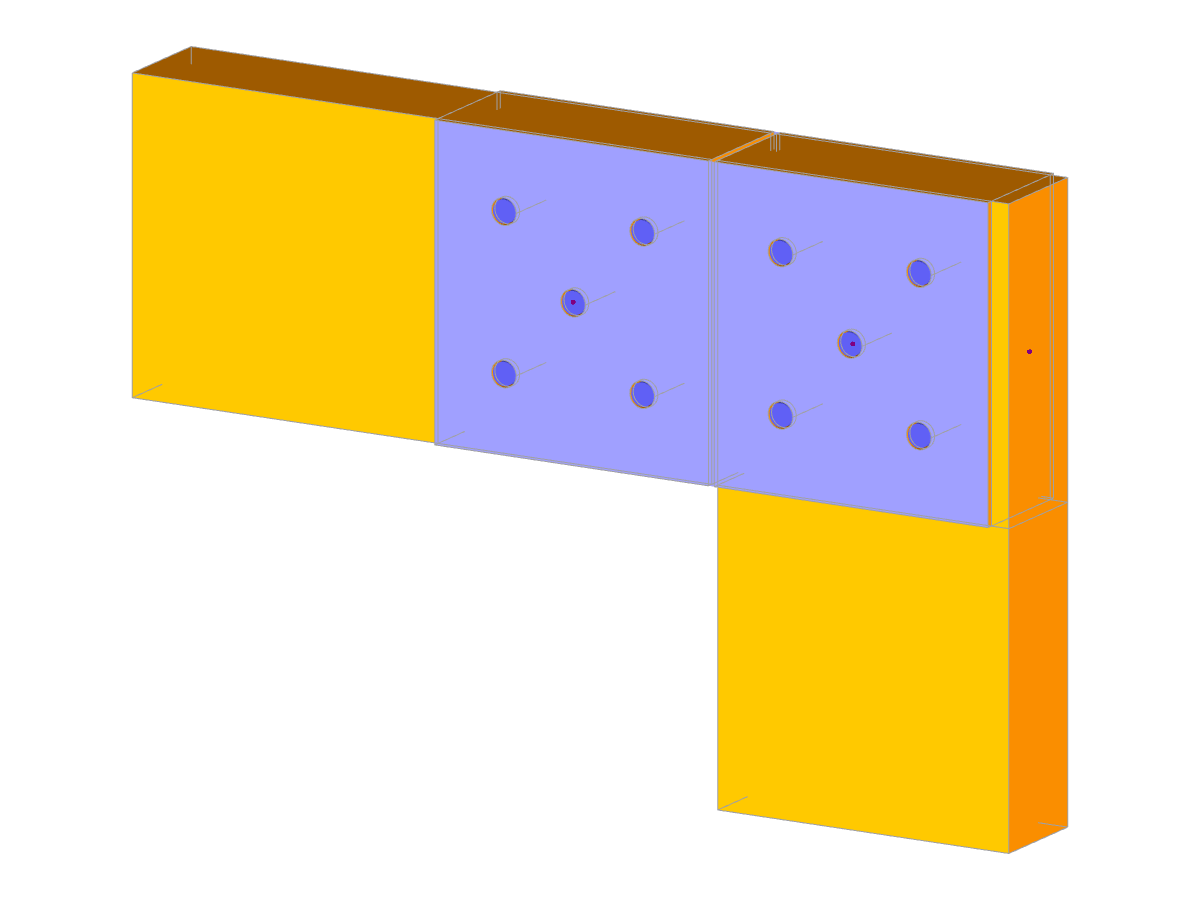

Model 004568 | Timber Beam Joint
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 207 |
| Number of Lines | 166 |
| Number of Members | 10 |
| Number of Surfaces | 100 |
| Number of Solids | 9 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.017 tons |
| Dimensions (Metric) | 0.602 x 0.092 x 0.400 m |
| Dimensions (Imperial) | 1.98 x 0.3 x 1.31 feet |
| Program Version | 5.26.02 |
