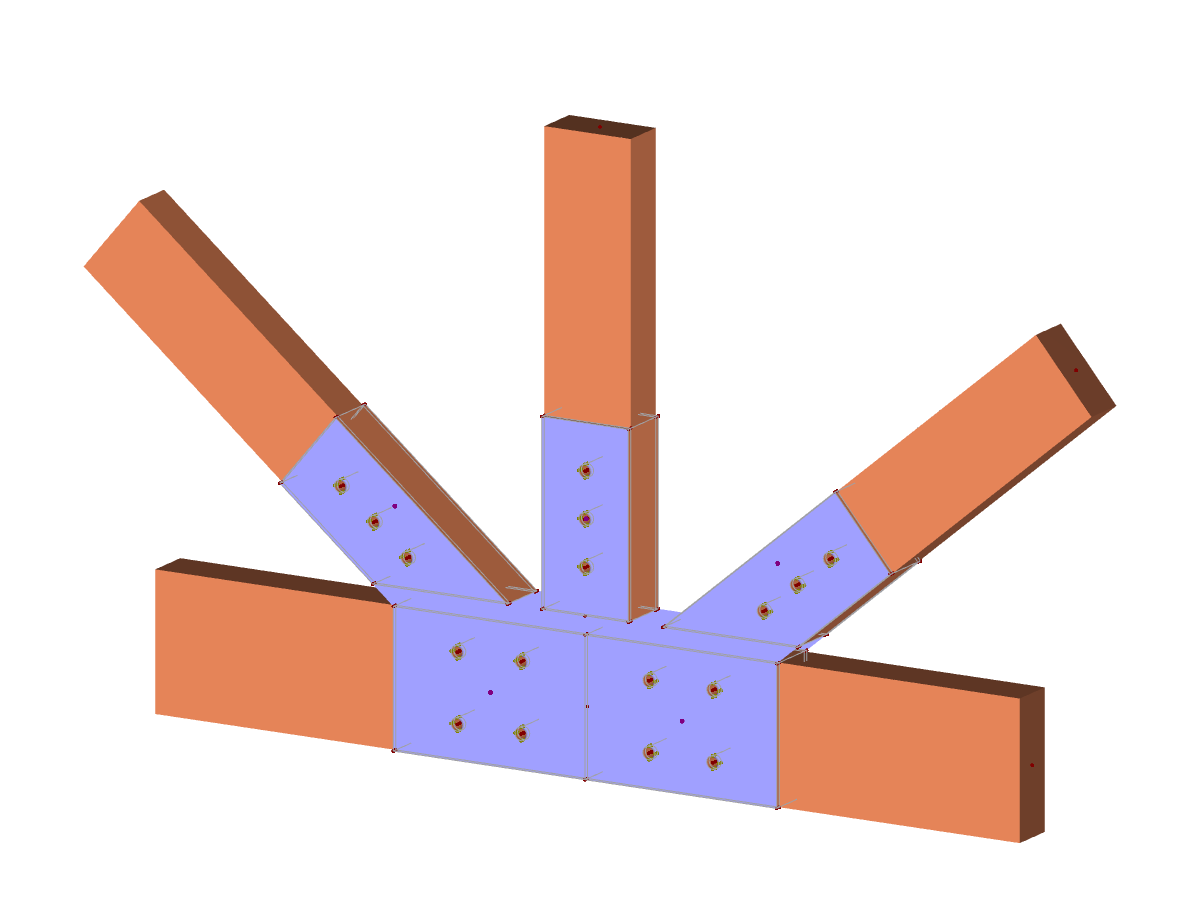

Model 004573 | Steel-Timber Connection with Flange
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 359 |
| Number of Lines | 316 |
| Number of Members | 56 |
| Number of Surfaces | 200 |
| Number of Solids | 15 |
| Total Weight | 0.037 tons |
| Dimensions (Metric) | 1.102 x 0.072 x 0.670 m |
| Dimensions (Imperial) | 3.62 x 0.24 x 2.2 feet |
| Program Version | 5.26.01 |
