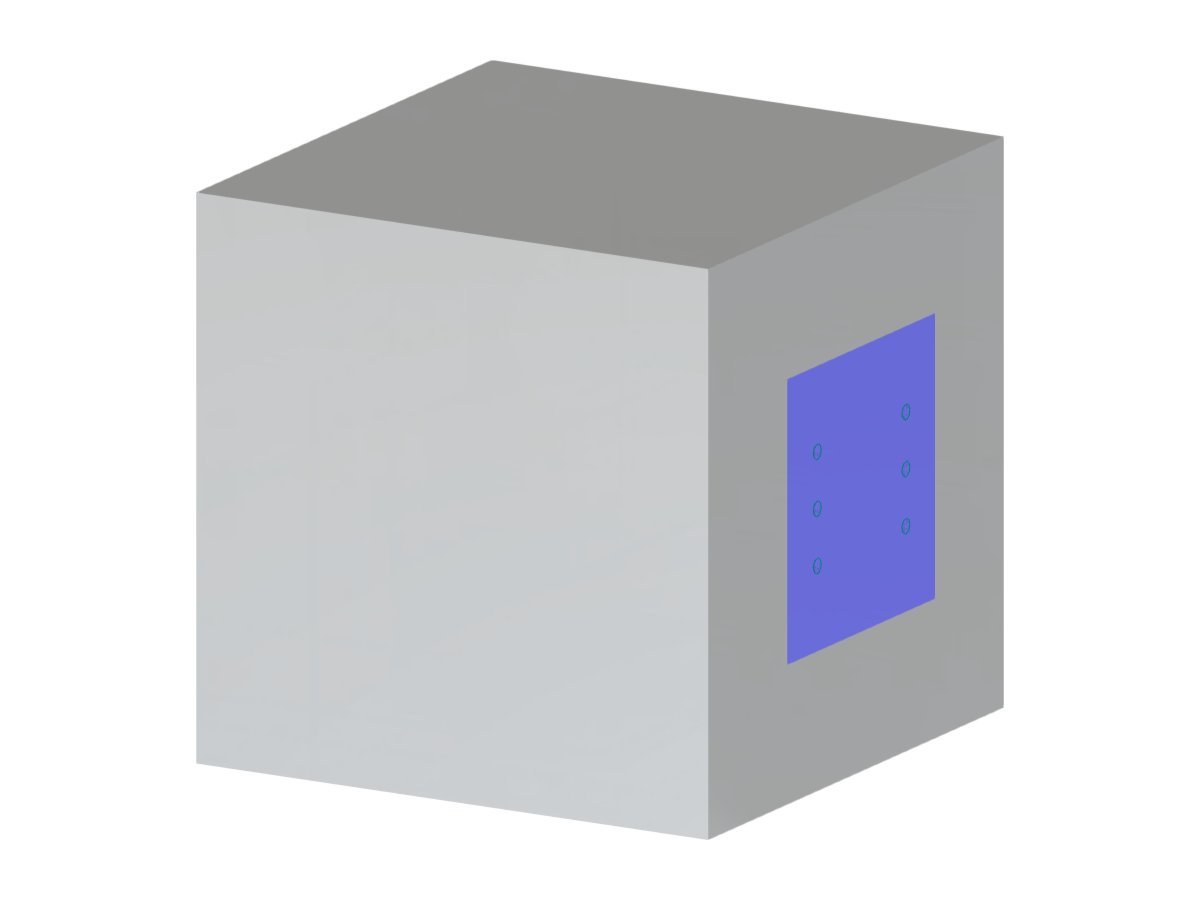

Model 004587 | Bolted Plate Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 34 |
| Number of Lines | 36 |
| Number of Members | 6 |
| Number of Surfaces | 18 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.352 tons |
| Dimensions (Metric) | 1.010 x 1.000 x 1.000 m |
| Dimensions (Imperial) | 3.31 x 3.28 x 3.28 feet |
