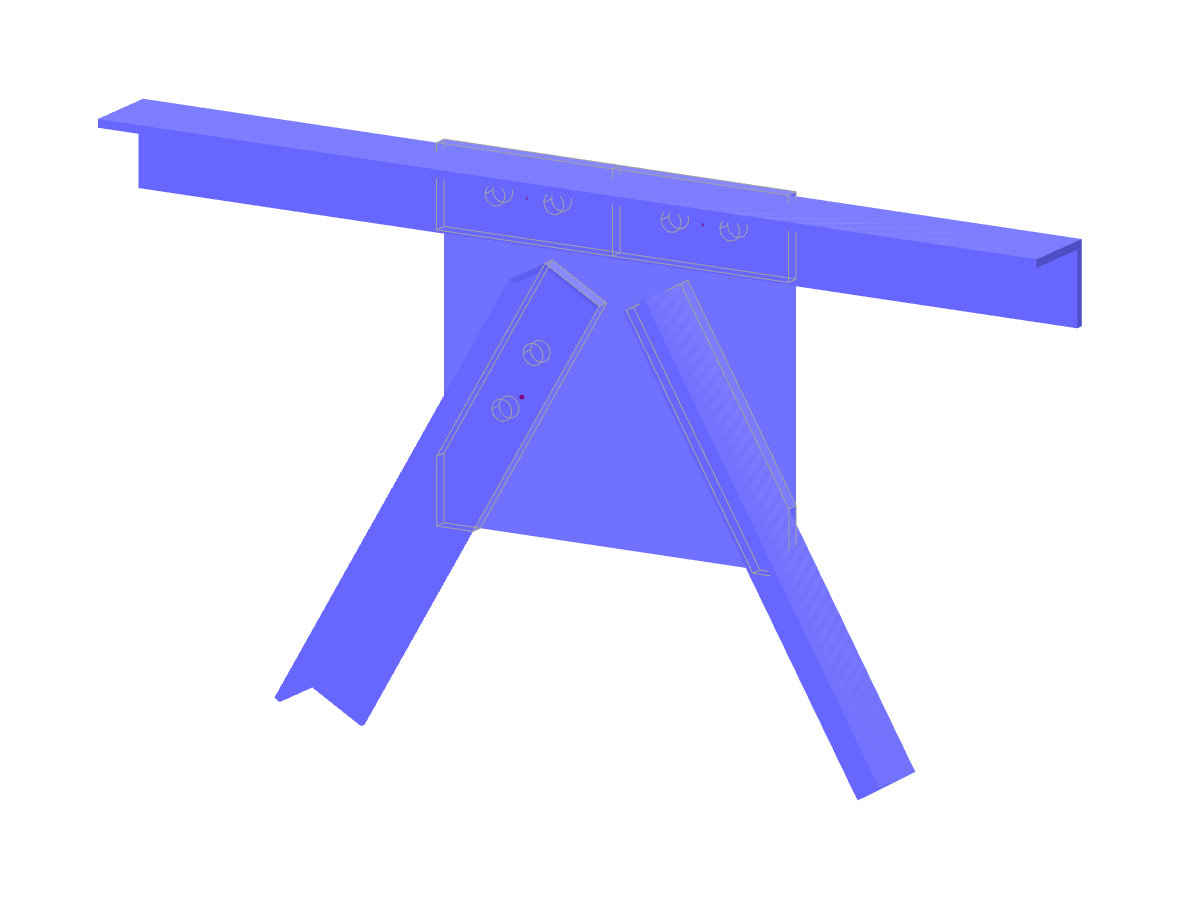

Model 004593 | L-Section Joint
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 126 |
| Number of Lines | 127 |
| Number of Members | 11 |
| Number of Surfaces | 68 |
| Number of Solids | 4 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 2 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 1.200 x 0.127 x 0.680 m |
| Dimensions (Imperial) | 3.94 x 0.42 x 2.23 feet |
| Program Version | 5.27.01 |
