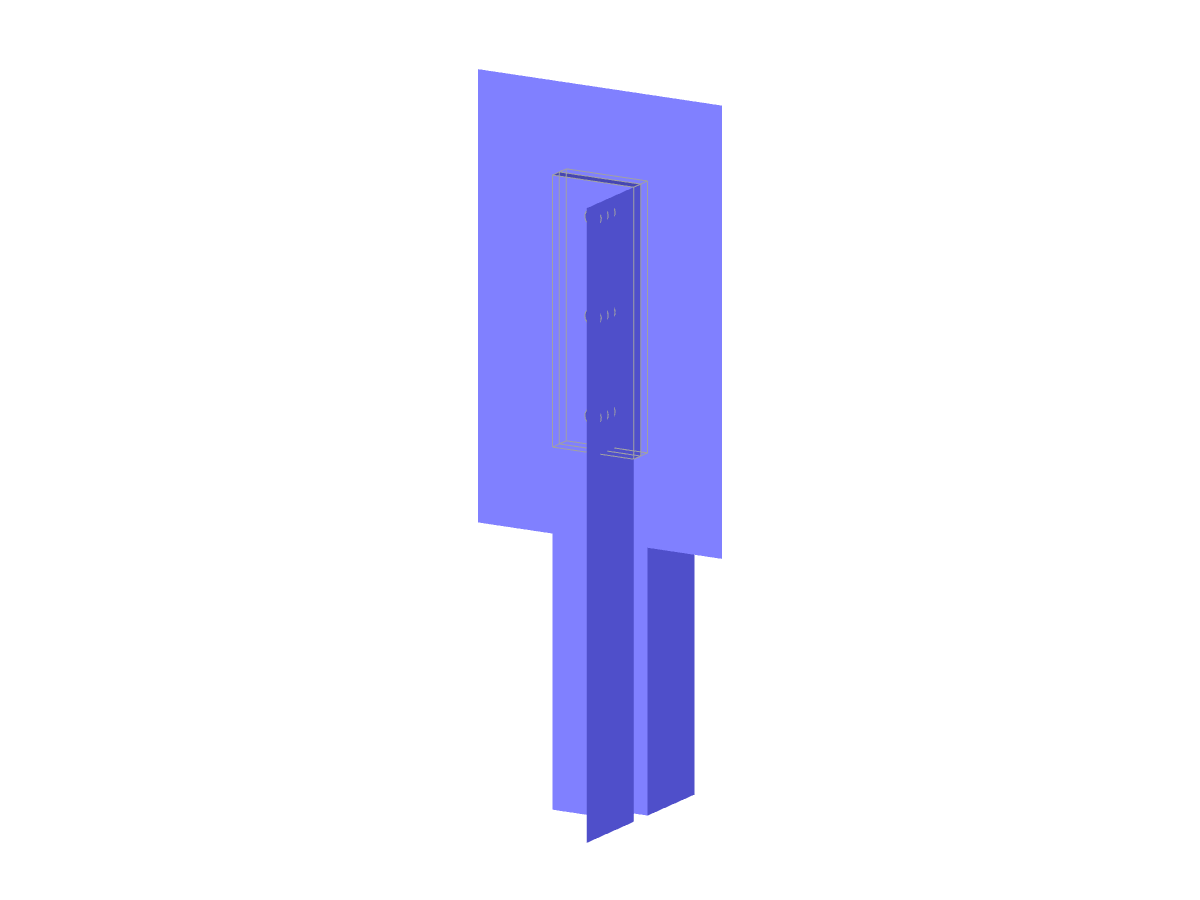

Model 004595 | Double L-Section Joint
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 62 |
| Number of Lines | 63 |
| Number of Members | 6 |
| Number of Surfaces | 35 |
| Number of Solids | 2 |
| Total Weight | 0.006 tons |
| Dimensions (Metric) | 0.150 x 0.115 x 0.400 m |
| Dimensions (Imperial) | 0.49 x 0.38 x 1.31 feet |
| Program Version | 5.27.01 |
