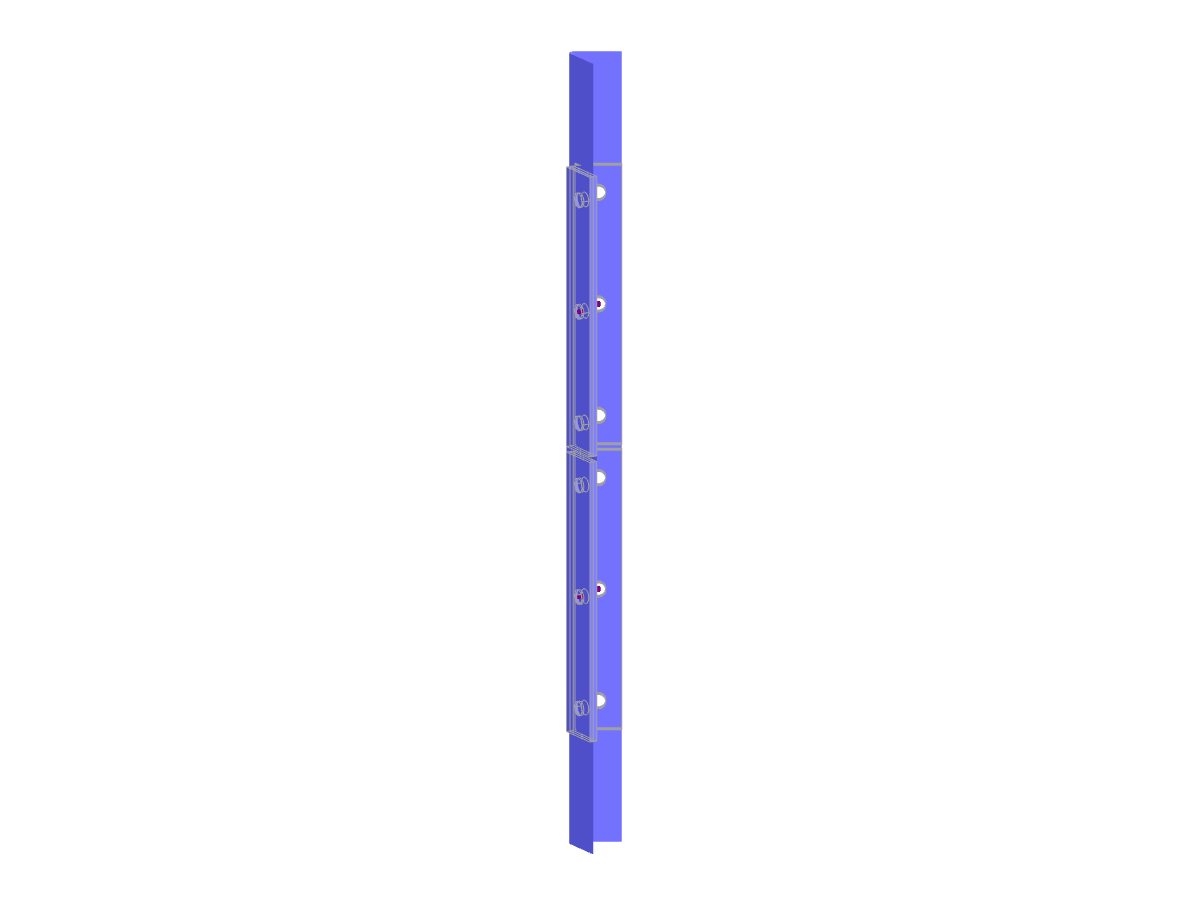

Model 004596 | Angled L-Section Joint
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 211 |
| Number of Lines | 192 |
| Number of Members | 24 |
| Number of Surfaces | 118 |
| Number of Solids | 8 |
| Dimensions (Metric) | 0.140 x 0.138 x 1.441 m |
| Dimensions (Imperial) | 0.46 x 0.45 x 4.73 feet |
| Program Version | 5.27.01 |
