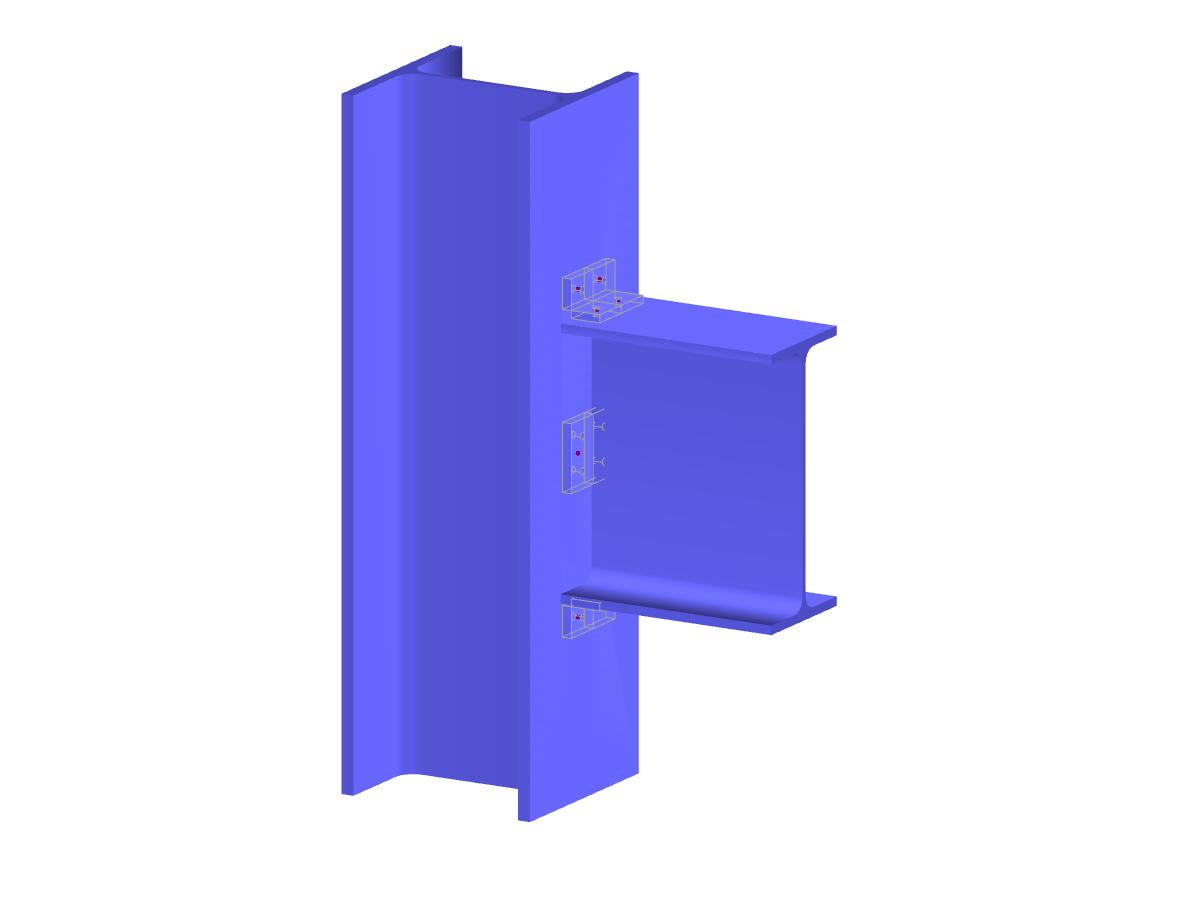

Model 004602 | I-Section Column to Beam Connection
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 177 |
| Number of Lines | 185 |
| Number of Members | 14 |
| Number of Surfaces | 102 |
| Number of Solids | 10 |
| Total Weight | 0.279 tons |
| Dimensions (Metric) | 0.650 x 0.300 x 1.000 m |
| Dimensions (Imperial) | 2.13 x 0.98 x 3.28 feet |
| Program Version | 5.26.02 |
