Visual Aids for Defining Support Conditions for Member Sets in Design According to EN 1993-1-1, Section 6.3.4

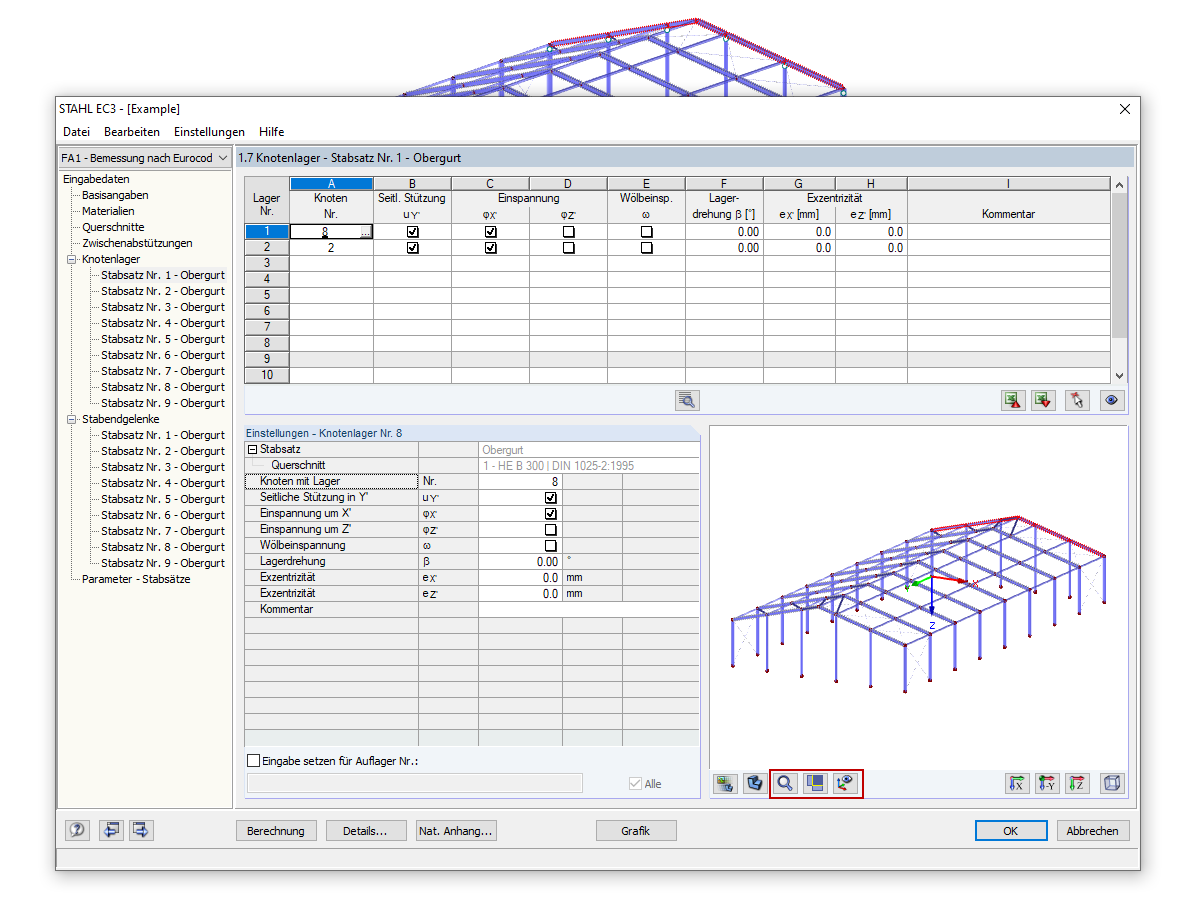

Definition of support conditions for member sets in steel design according to EN 1993-1-1, Section 6.3.4.
The image shows the features for defining support conditions for member sets in accordance with EN 1993-1-1, Section 6.3.4. It illustrates how visual aids allow for the precise adjustment of reference lengths and segmentations in different directions. Deflections can be calculated for both the initial and the deformed structural system. Different design situations allow for the specification of variable limit values. The graphical display integrates results, such as deflection and limit utilization, into reports.
3D Model
Specifications
| Number of Nodes | 89 |
| Number of Lines | 168 |
| Number of Members | 168 |
| Number of Load Cases | 1 |
| Total Weight | 53.542 t |
| Dimensions (Metric) | 26.077 x 51.077 x 9.888 m |
| Dimensions (Imperial) | 85.55 x 167.58 x 32.44 feet |
| Program Version | 5.23.02 |
