Container Structure Modal Analysis
Global deformation modal analysis of container structure simulation by Modular Structural Consultants LLC.

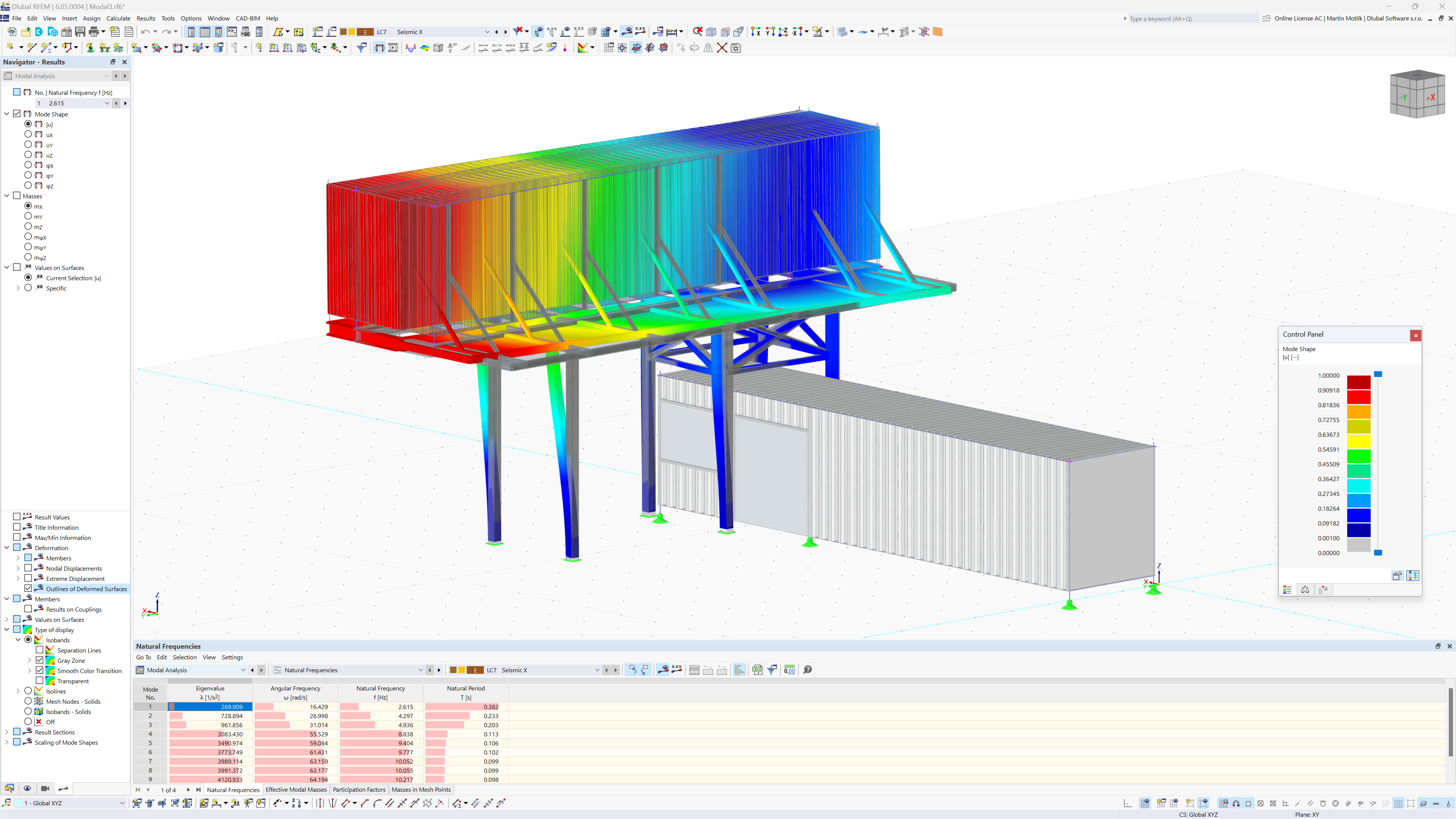

The image displays a modal analysis result of a container structure performed in RFEM 6 with global deformation. The analysis emphasizes dynamic response characteristics and structural behavior under modal excitation. The model has been provided by the customer © Modular Structural Consultants LLC.
3D Model
Specifications
| Number of Nodes | 3054 |
| Number of Lines | 5705 |
| Number of Members | 1339 |
| Number of Surfaces | 1669 |
| Number of Solids | 0 |
| Number of Load Cases | 22 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 2 |
| Total Weight | 14.624 tons |
| Dimensions (Metric) | 12.192 x 7.772 x 12.192 m |
| Dimensions (Imperial) | 40 x 25.5 x 40 feet |
