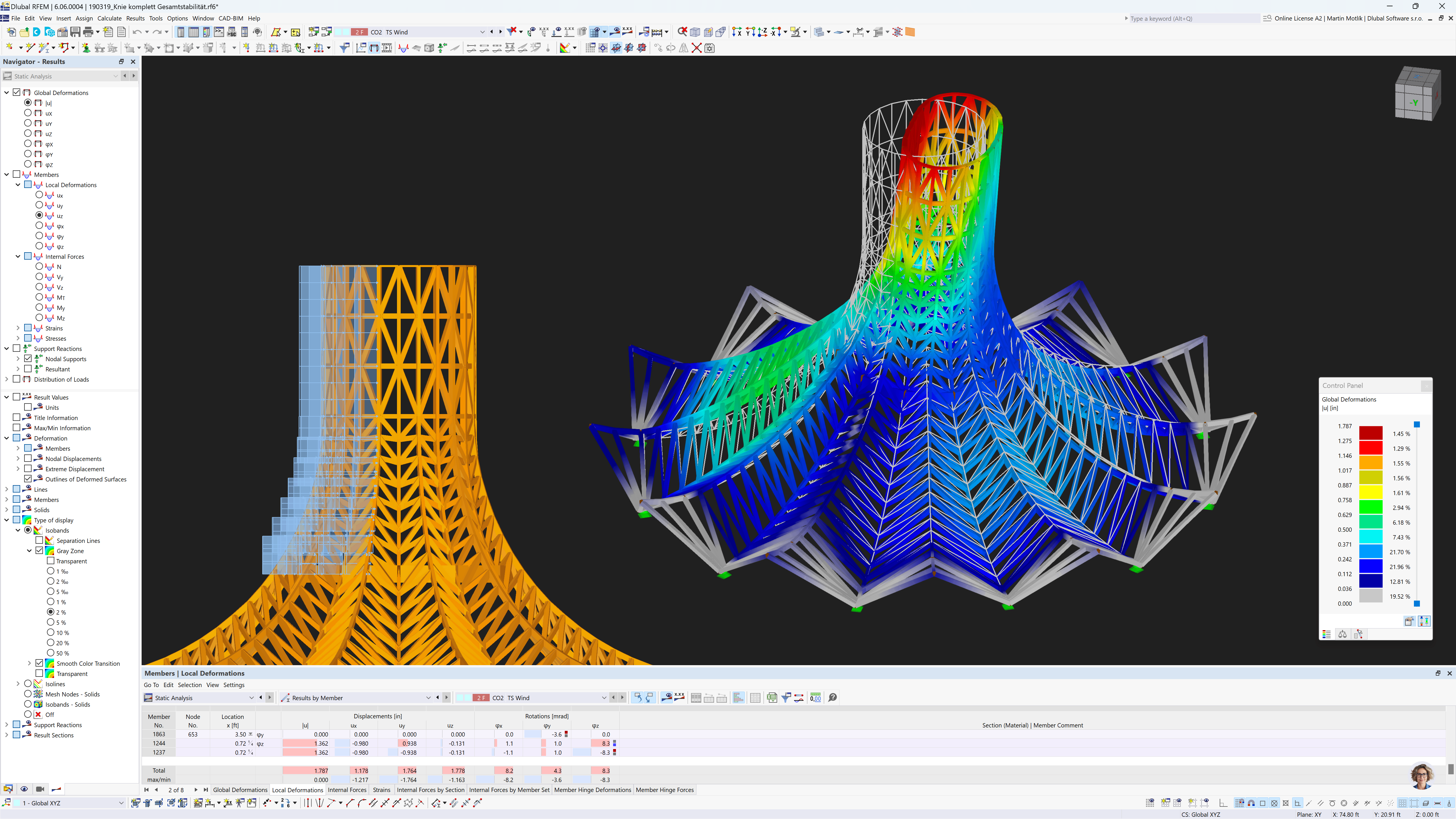

Global Deformation of Timber Structure Due to Wind Forces in RFEM 6 | Knies Magician's Hat in Rapperswil, Switzerland © Ghisleni Partner AG

This image shows a user interface of the RFEM 6 software, which is used for the structural analysis and design. In the main area of the interface, there is a complex 3D model of a timber structure, presented in two different views: a transparent outline view on the left and a colored structural analysis on the right.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 660
Number of Members 1884
Number of Load Cases 6
Number of Load Combinations 6
Total Weight 93.988 tons
Dimensions (Metric) 35.120 x 35.120 x 21.470 m
Dimensions (Imperial) 115.22 x 115.22 x 70.44 feet
Program Version 8.26.02
