Bucket Foundation with Eccentricity

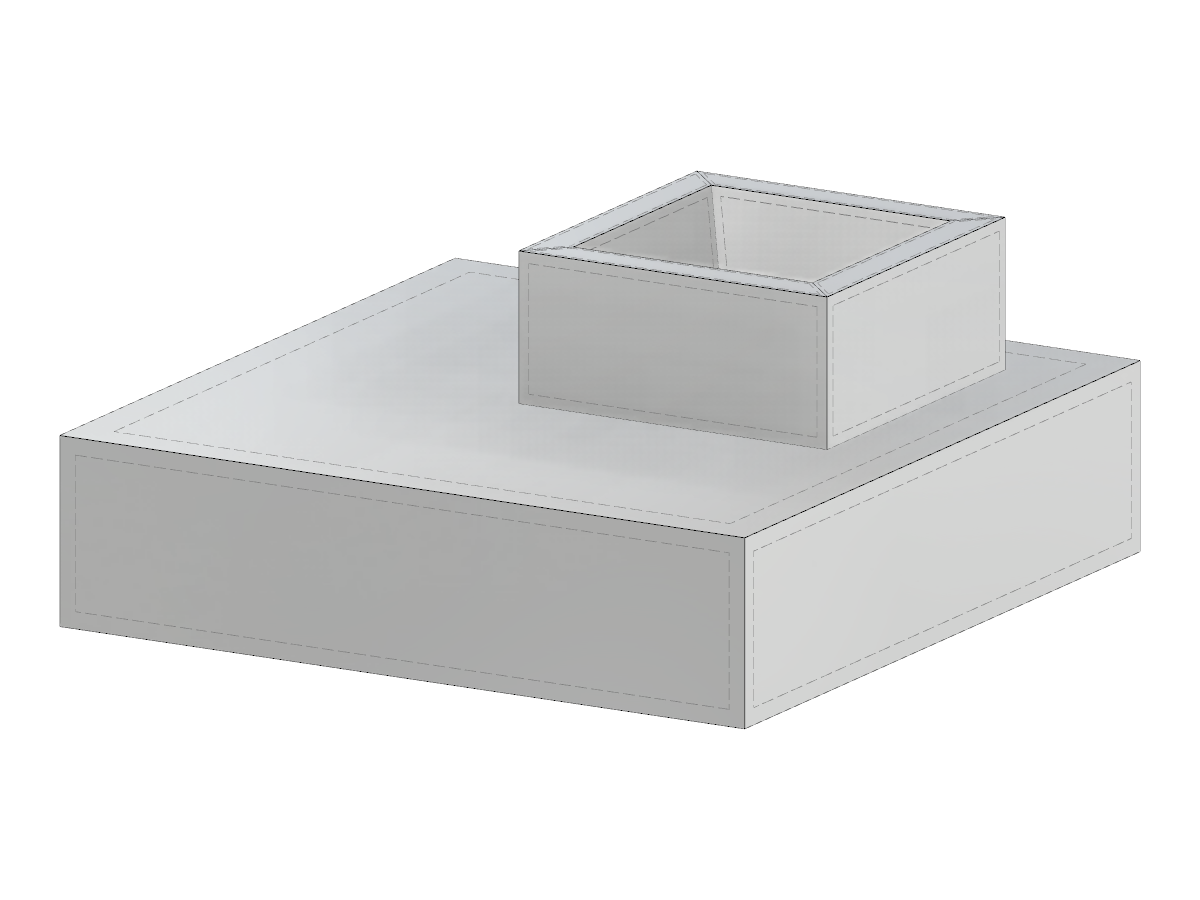

Illustration of a bucket foundation showing the effects and considerations of eccentricity on its structural stability.
The image displays a bucket foundation with a focus on eccentricity, highlighting how such forces affect the stability of the structure. Eccentricity in foundations can lead to uneven load distribution, necessitating careful design calculations to ensure safety and integrity. Proper design strategies include balancing the load to avoid tilting or stress concentrations. Understanding the effects of eccentricity is critical for the longevity and durability of structures.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 44 |
| Number of Members | 0 |
| Number of Surfaces | 22 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.447 tons |
| Dimensions (Metric) | 2.000 x 0.900 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 2.95 x 6.56 feet |
