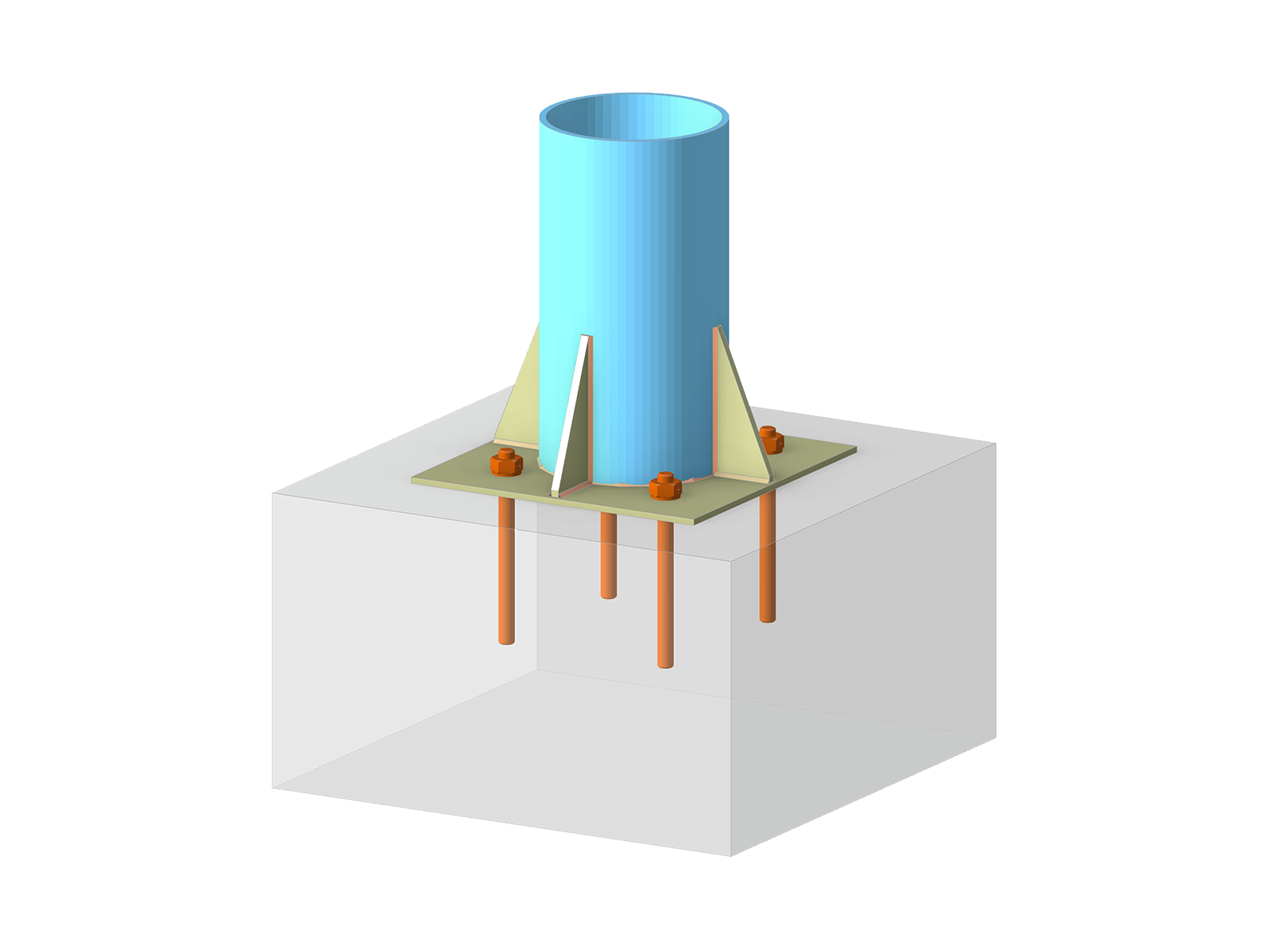

Model 004913 | Steel CHS Column Connection to Concrete Foundation
3D Model
Specifications
| Number of Nodes | 347 |
| Number of Lines | 564 |
| Number of Members | 564 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 18 |
| Number of Result Combinations | 0 |
| Total Weight | 24.899 tons |
| Dimensions (Metric) | 18.068 x 5.800 x 36.000 m |
| Dimensions (Imperial) | 59.28 x 19.03 x 118.11 feet |
