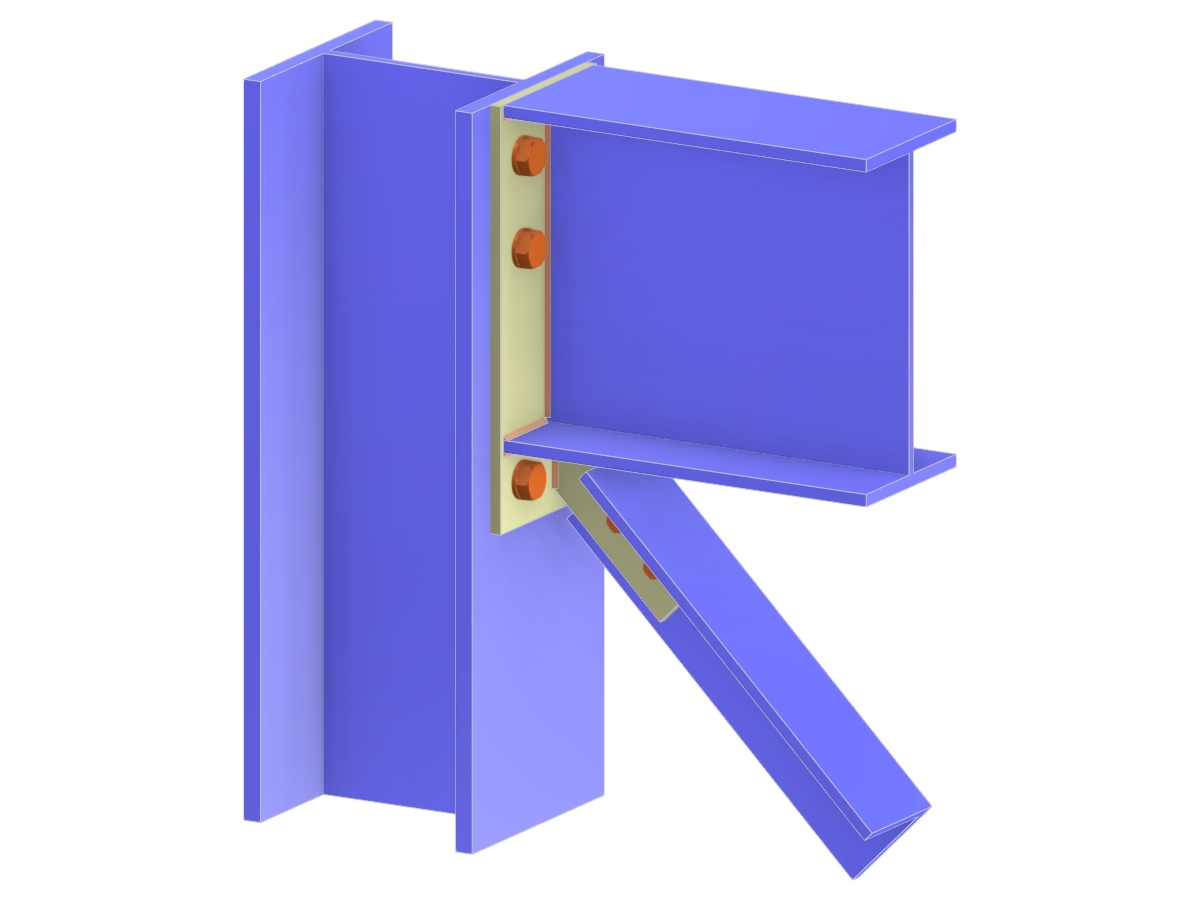

Model 005022 | Beam and Diagonal Brace to Column Flange Connection via Extended End Plate and Fin Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.063 tons |
| Dimensions (Metric) | 0.480 x 0.490 x 0.000 m |
| Dimensions (Imperial) | 1.57 x 1.61 x 0 feet |
