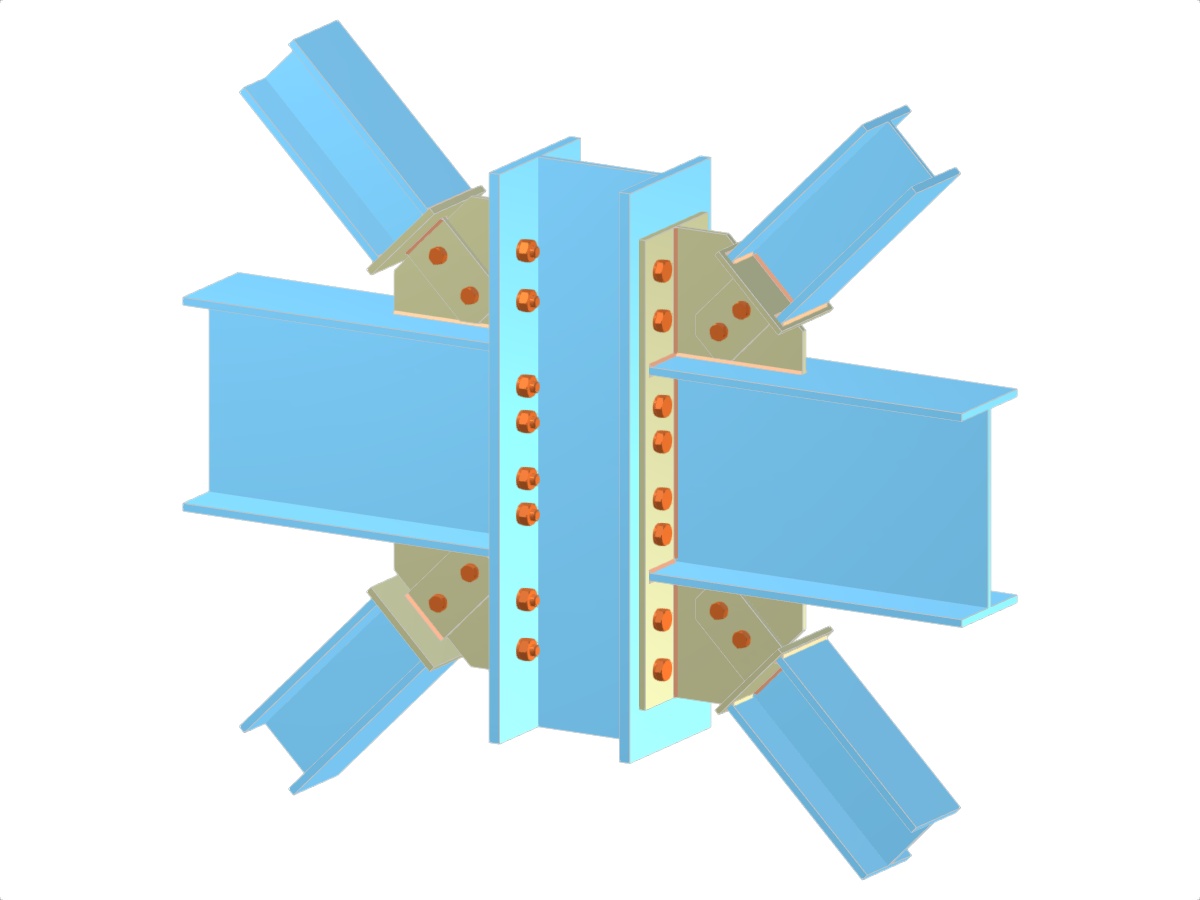

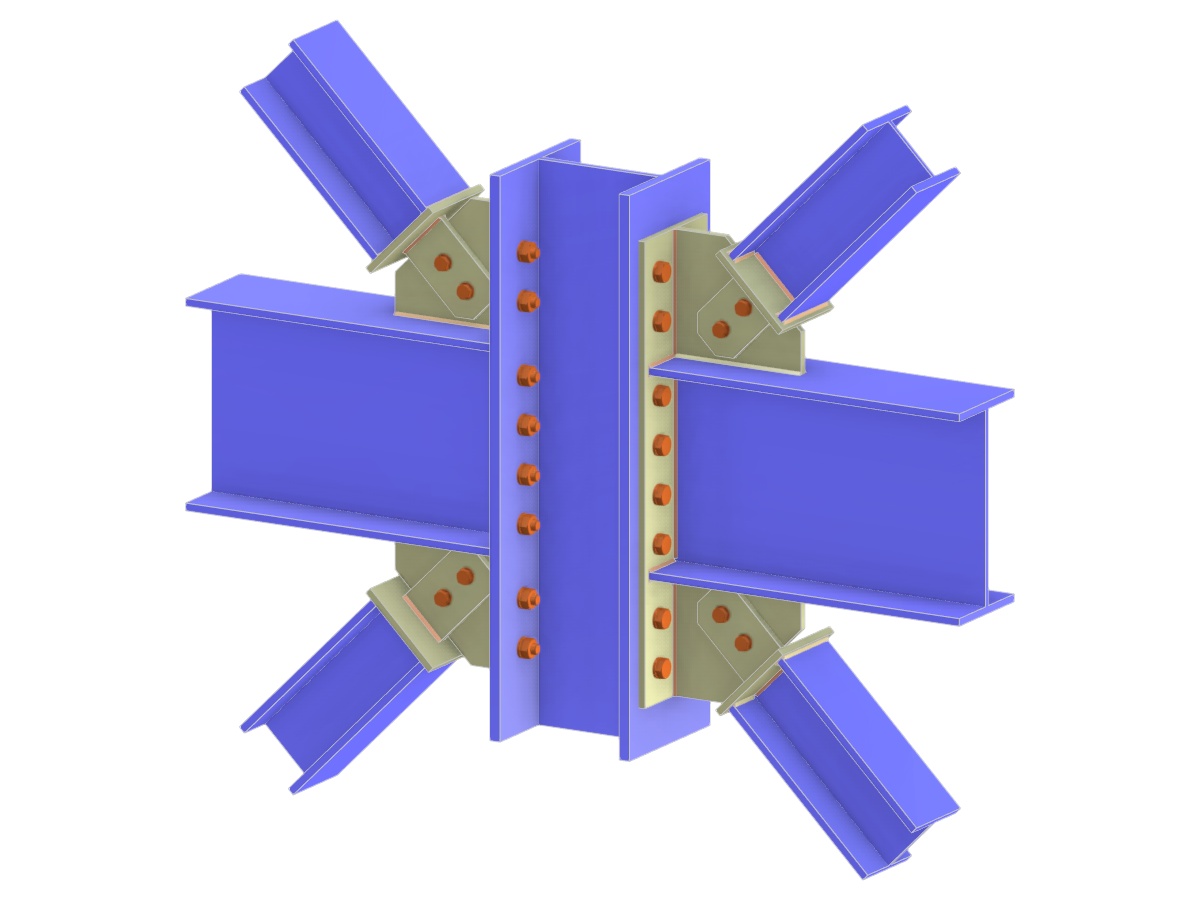

Model 005107 | Beams and Diagonal Braces to Column Flange Connection via Extended End Plate and Gusset Plate
Used in
3D Model
More About 3D Model
Specifications
| Number of Nodes | 9 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.178 tons |
| Dimensions (Metric) | 1.220 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 4 x 3.28 x 0 feet |
