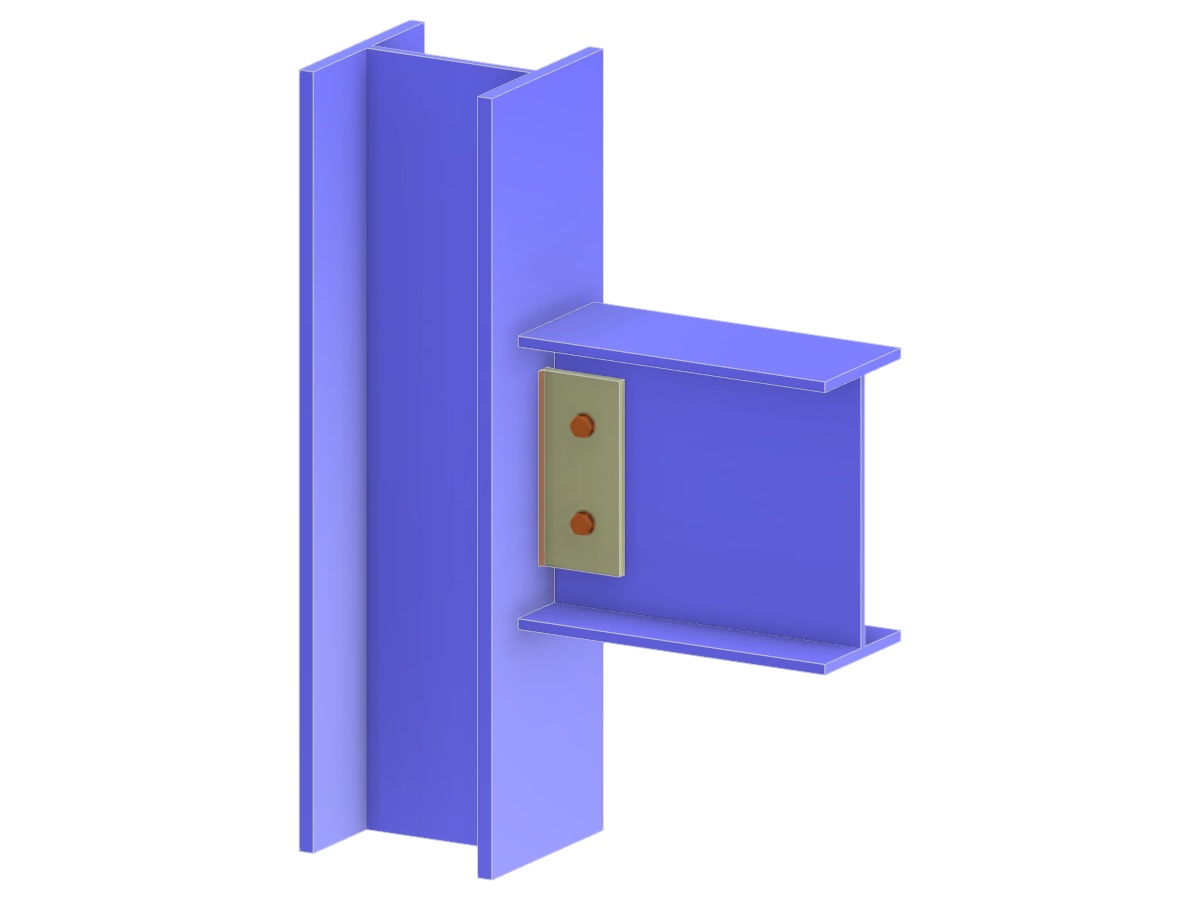

Model 005121 | Beam-to-Column-Web Connection via Fin Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.076 tons |
| Dimensions (Metric) | 0.470 x 0.820 x 0.000 m |
| Dimensions (Imperial) | 1.54 x 2.69 x 0 feet |
