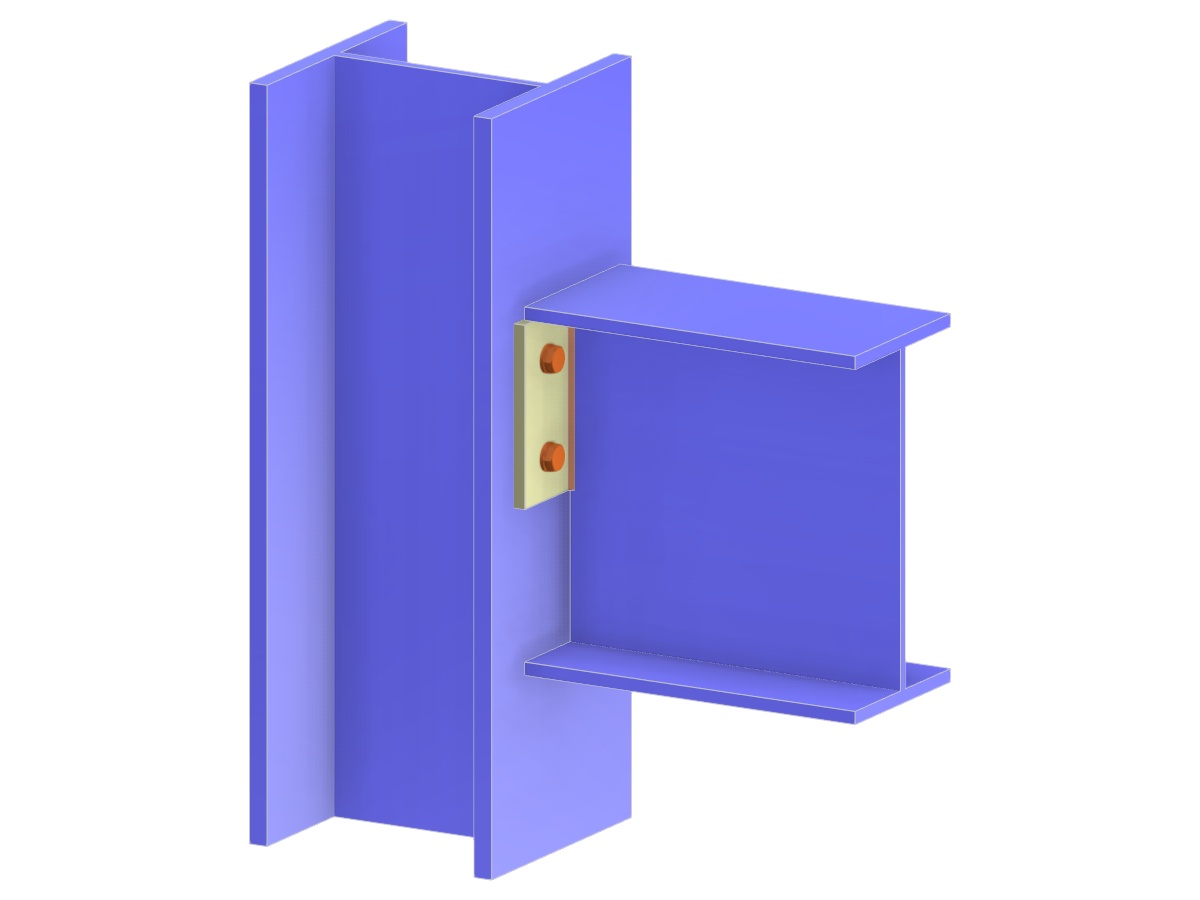

Model 005122 | Beam to Column Flange Connection via Partial-Depth End Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.060 tons |
| Dimensions (Metric) | 0.430 x 0.620 x 0.000 m |
| Dimensions (Imperial) | 1.41 x 2.03 x 0 feet |
