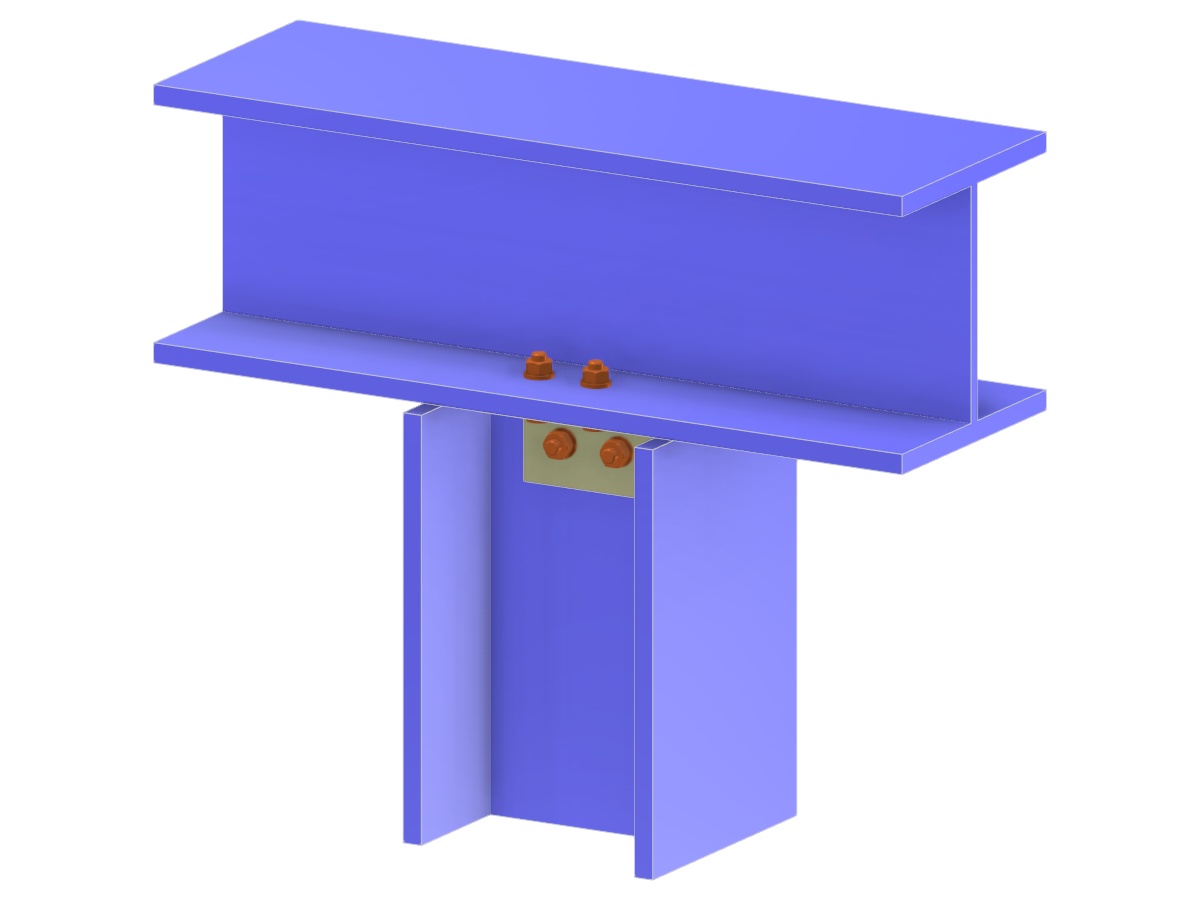

Model 005123 | Column to Beam Flange Connection via Cleats
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.078 tons |
| Dimensions (Metric) | 0.660 x 0.460 x 0.000 m |
| Dimensions (Imperial) | 2.17 x 1.51 x 0 feet |
