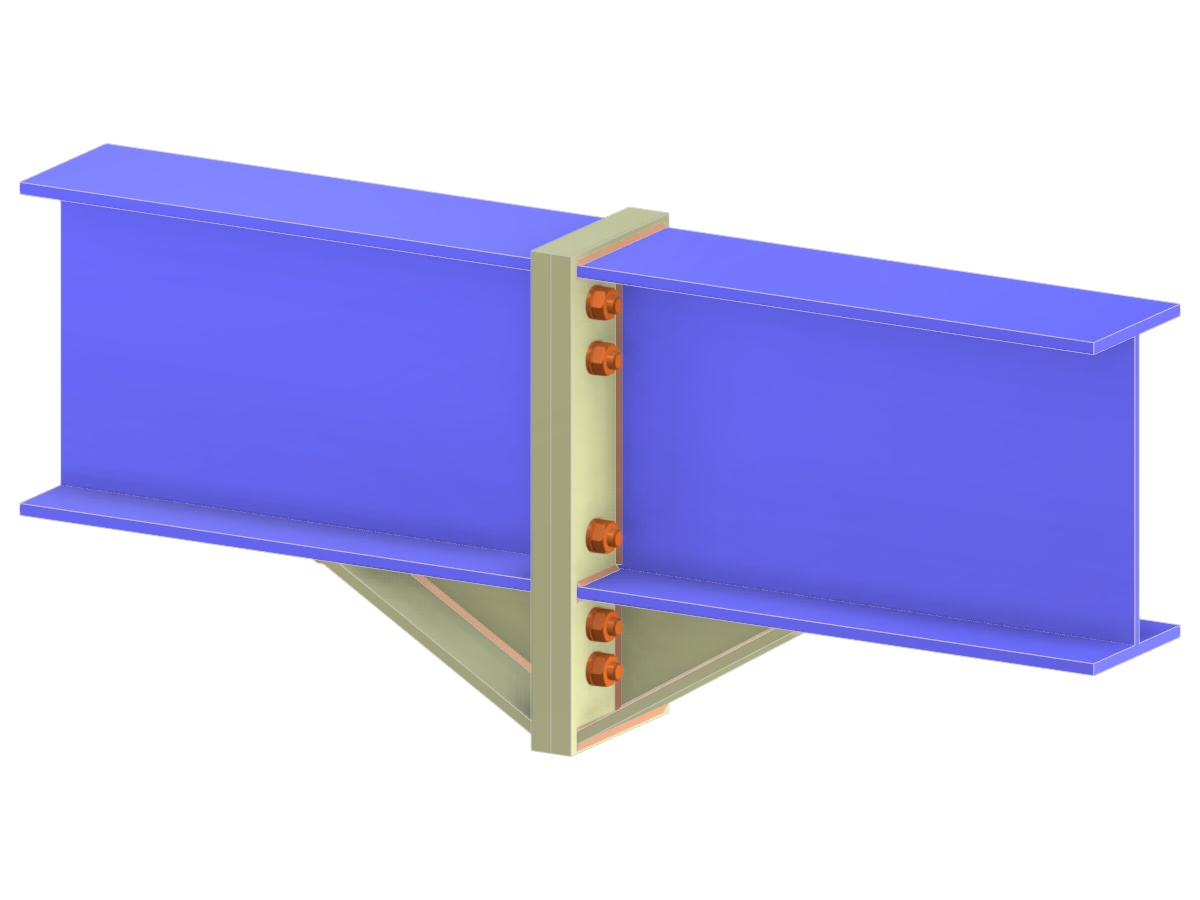

Model 005135 | Beam Splice via Extended End Plate to Plate and Haunch
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.044 tons |
| Dimensions (Metric) | 1,080 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 3.54 x 0 x 0 feet |
