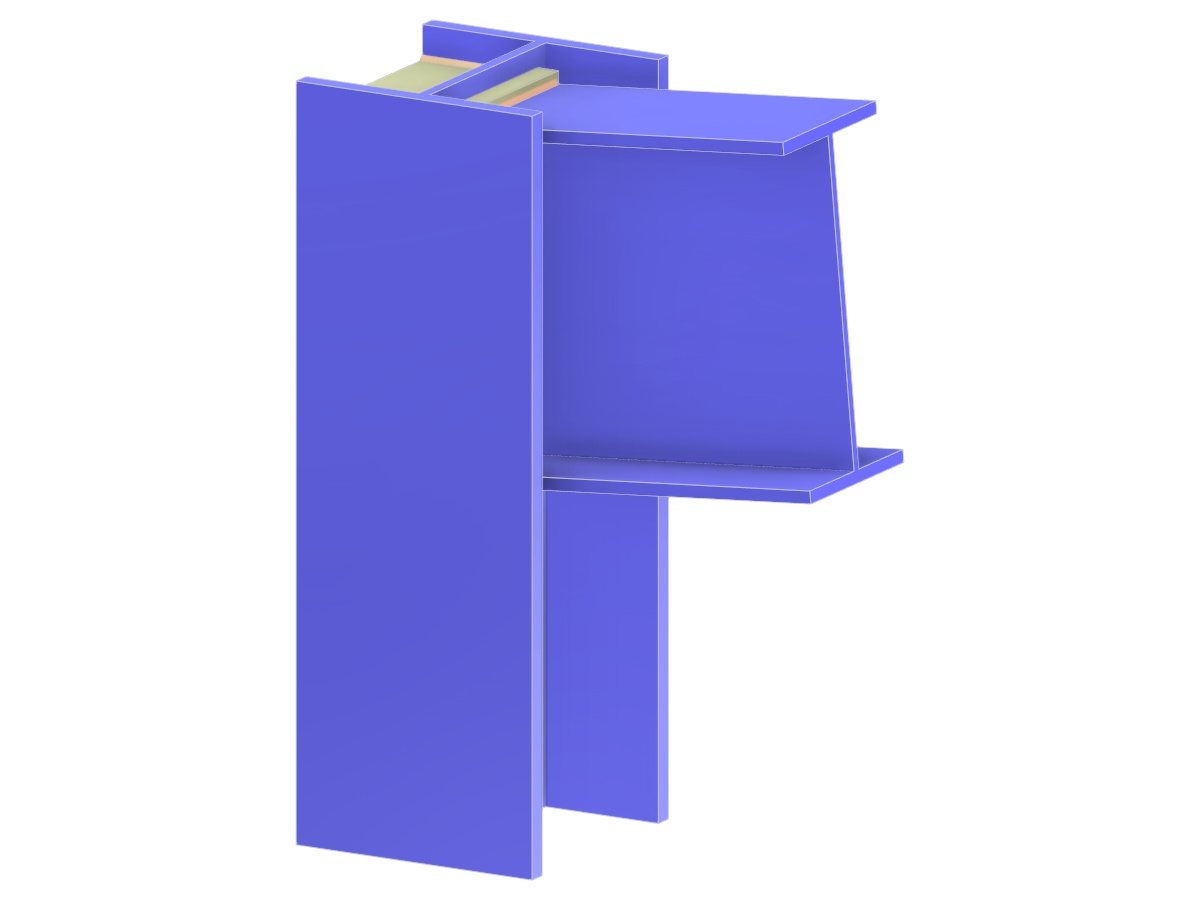

Model 005142 | Beam to Column Web Connection via Full-Depth End Plate
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.051 tons |
| Dimensions (Metric) | 0,408 x 0,526 x 0,000 m |
| Dimensions (Imperial) | 1.34 x 1.73 x 0 feet |
