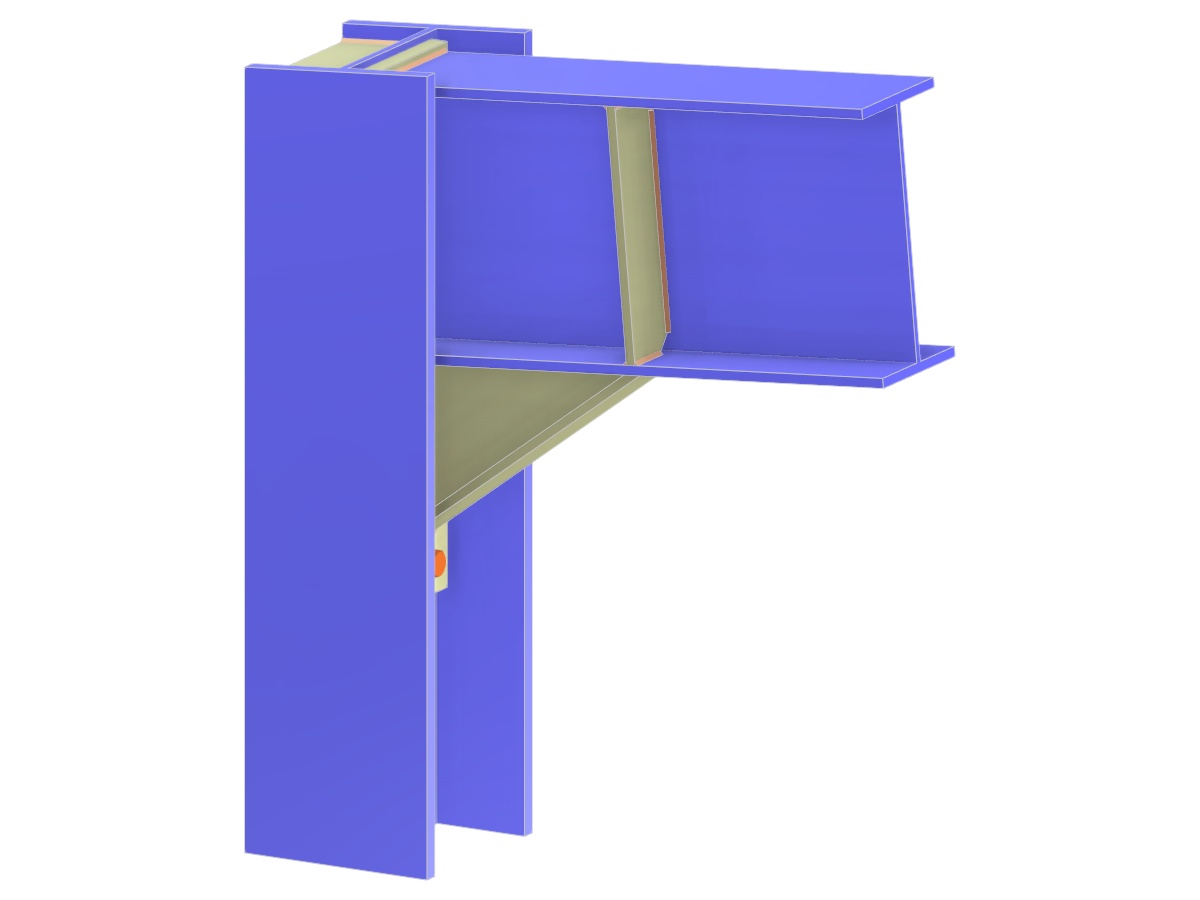

Model 005144 | Beam to Column Web Connection via Extended End Plate and Haunch
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.078 tons |
| Dimensions (Metric) | 0,727 x 0,754 x 0,000 m |
| Dimensions (Imperial) | 2.39 x 2.47 x 0 feet |
