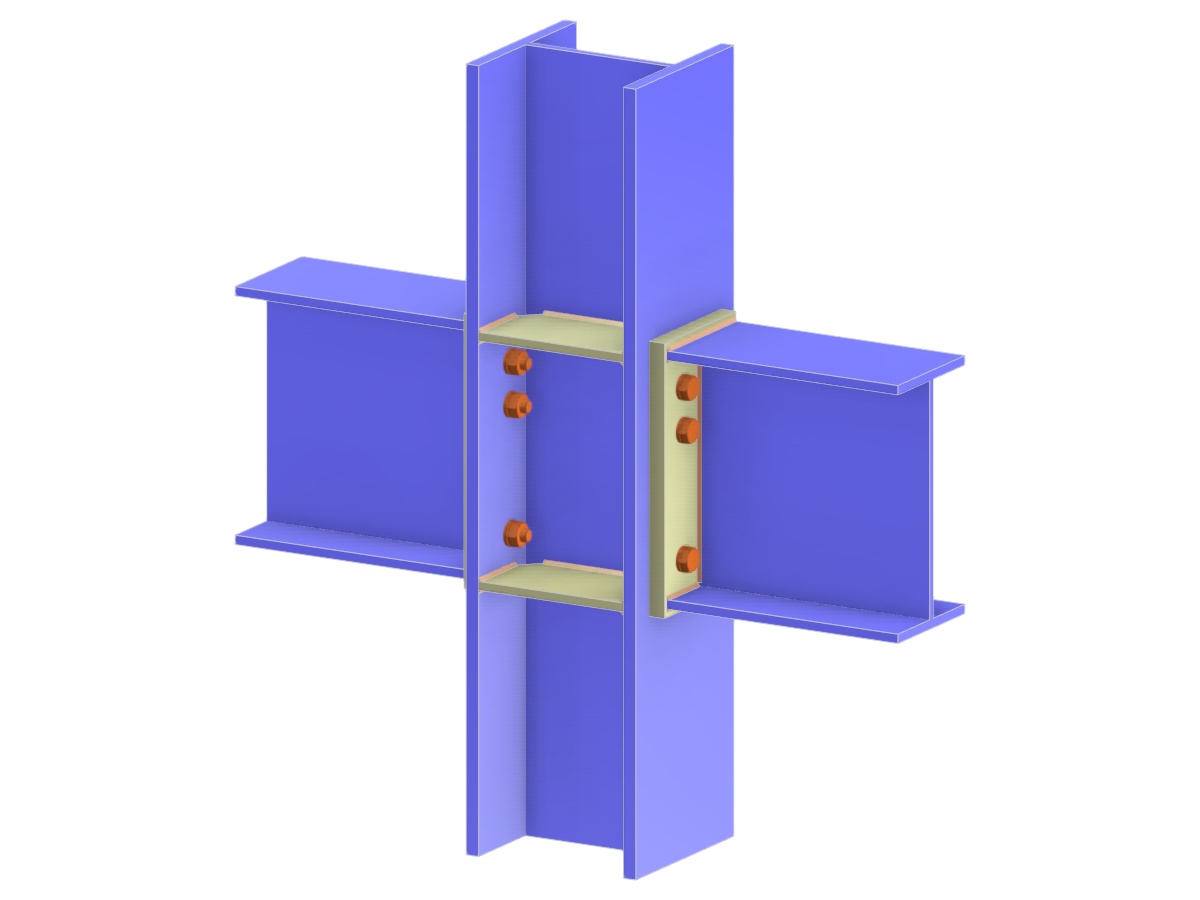

Model 005167 | Beam to Column Flange Connection via Full-Depth End Plate
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.100 tons |
| Dimensions (Metric) | 0.880 x 0.920 x 0.000 m |
| Dimensions (Imperial) | 2.89 x 3.02 x 0 feet |
