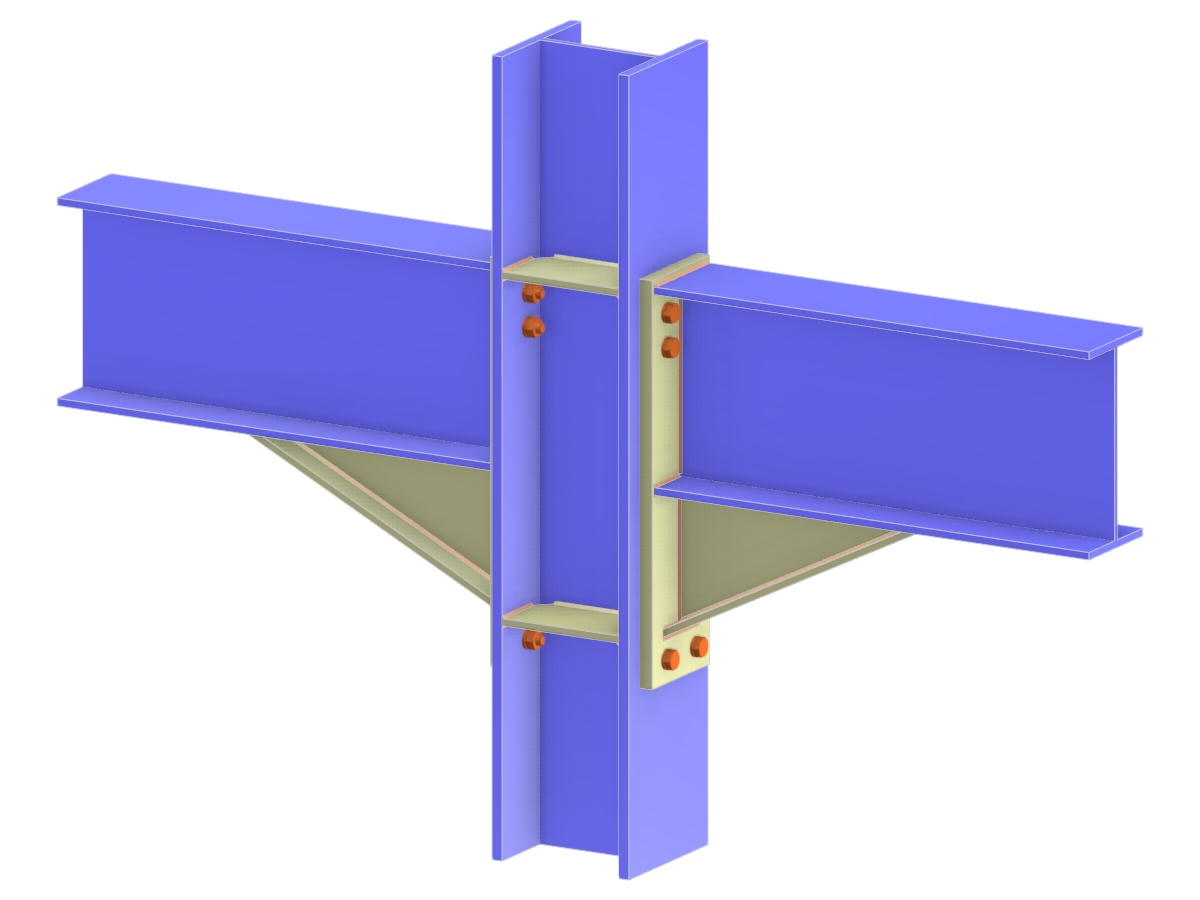

Model 005168 | Beam to Column Flange Connection via Extended End Plate and Haunch
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.148 tons |
| Dimensions (Metric) | 1.660 x 1.160 x 0.000 m |
| Dimensions (Imperial) | 5.45 x 3.81 x 0 feet |
