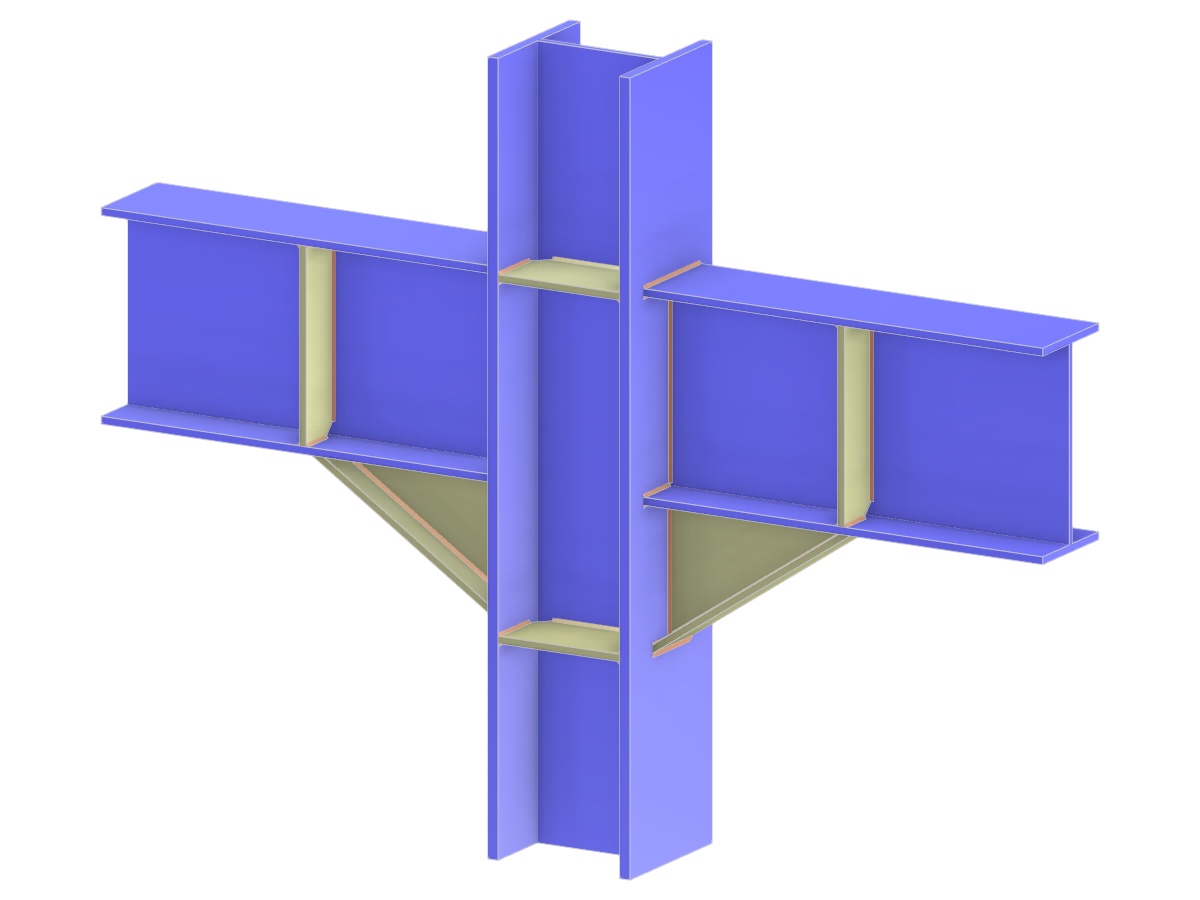

Model 005181 | Beam to Column Flange Connection with Haunch
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.139 tons |
| Dimensions (Metric) | 1,480 x 1,130 x 0,000 m |
| Dimensions (Imperial) | 4.86 x 3.71 x 0 feet |
