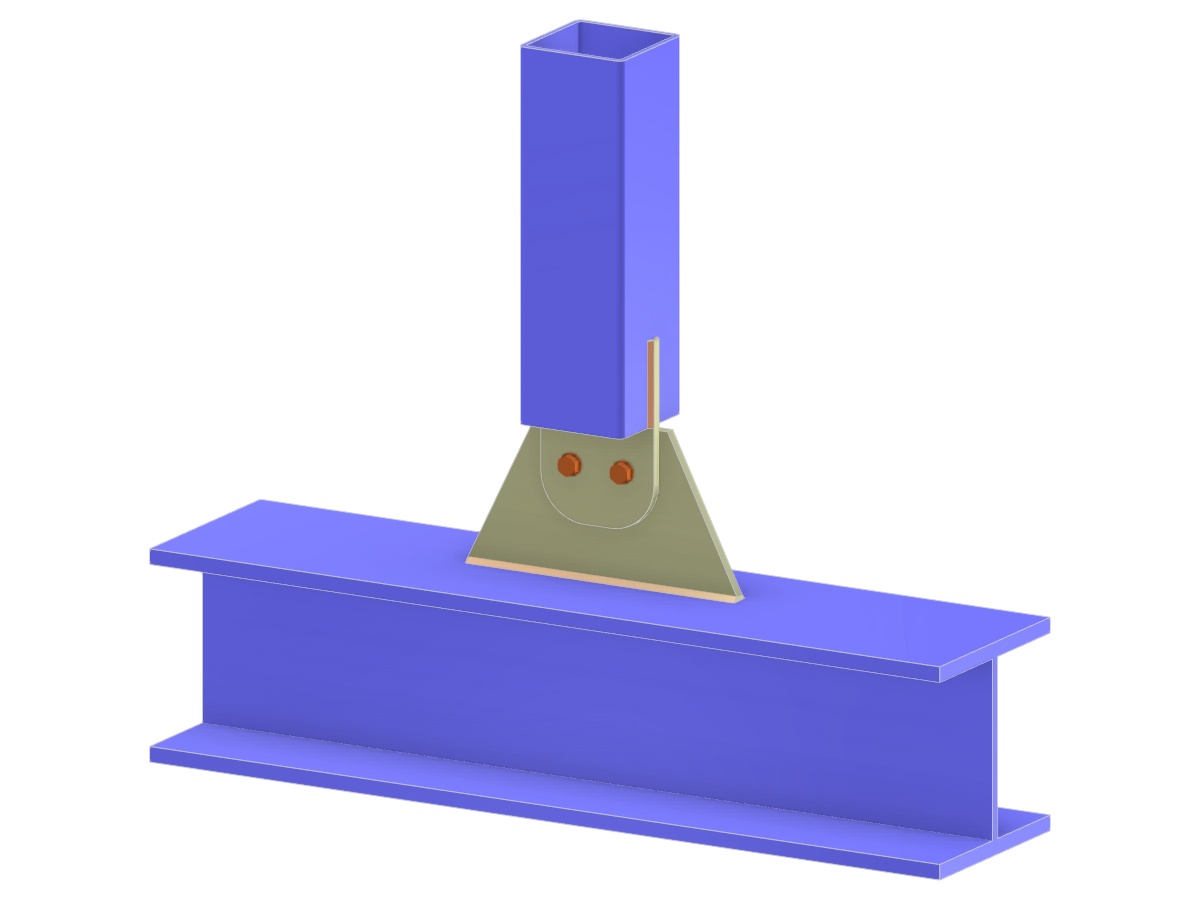

Model 005194 | Truss T-Joint | Vertical to Chord Connection via Gusset Plate and Tongue Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.077 tons |
| Dimensions (Metric) | 0.940 x 0.670 x 0.000 m |
| Dimensions (Imperial) | 3.08 x 2.2 x 0 feet |
