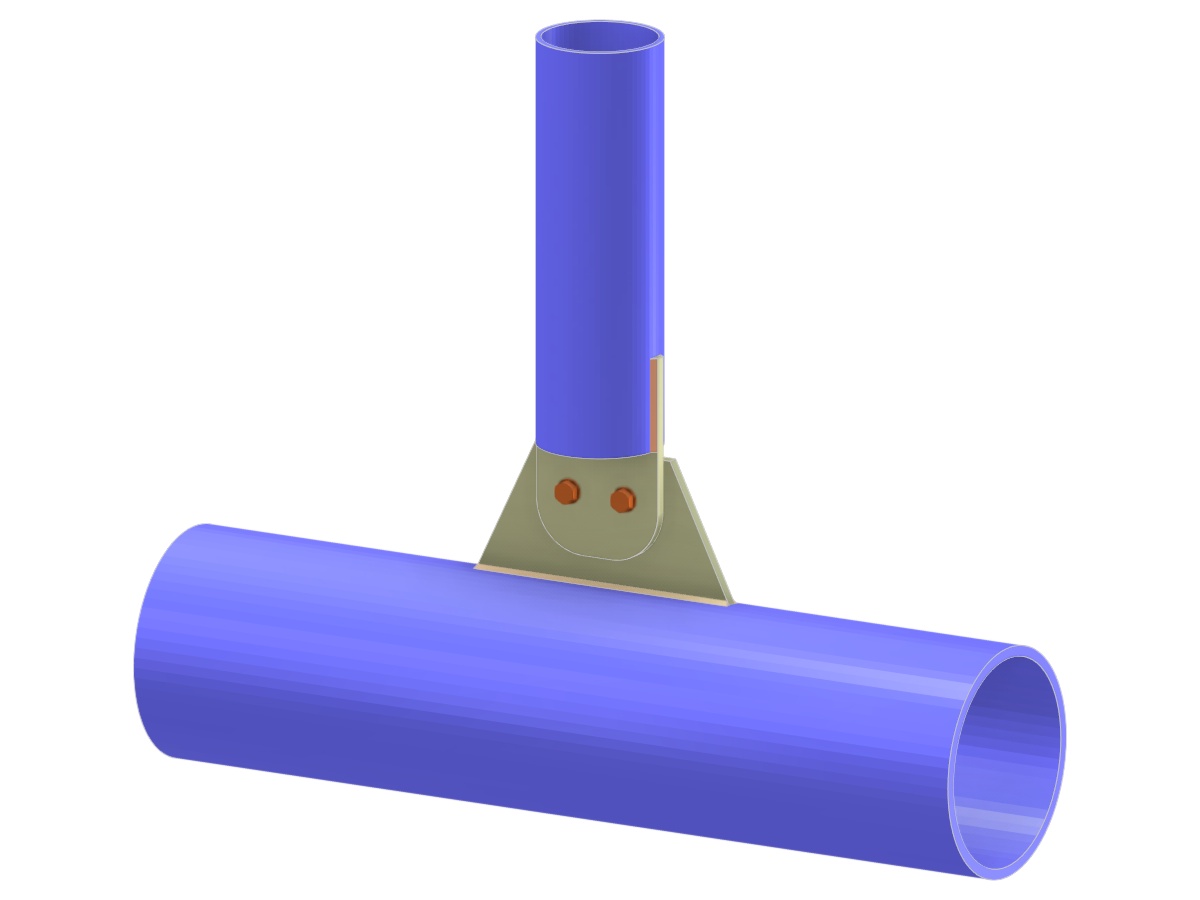

Model 005196 | Truss T-Joint | Vertical to Chord Connection via Gusset Plate and Tongue Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.059 tons |
| Dimensions (Metric) | 0,960 x 0,680 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 2.23 x 0 feet |
