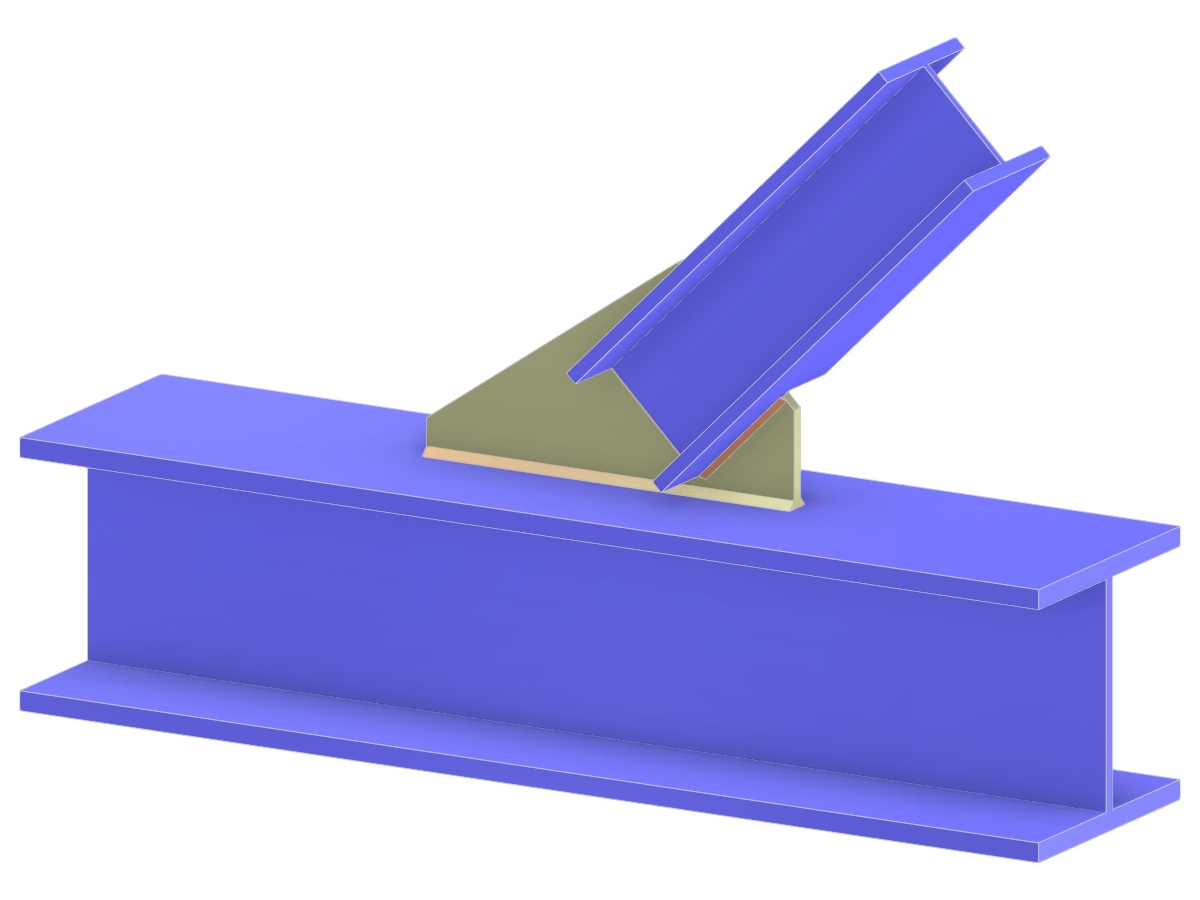

Model 005259 | Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.080 tons |
| Dimensions (Metric) | 0.920 x 0.450 x 0.000 m |
| Dimensions (Imperial) | 3.02 x 1.48 x 0 feet |
