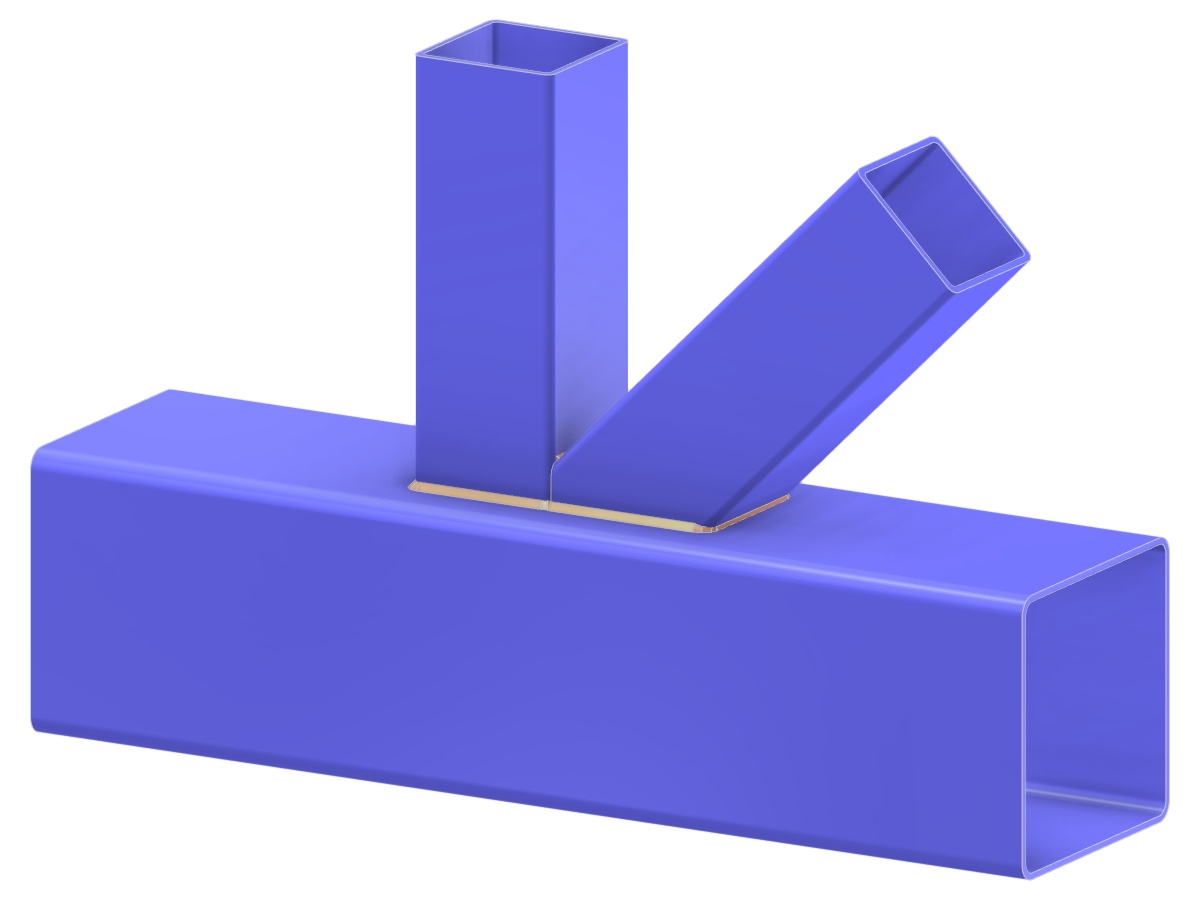

Model 005268 | Truss N-Joint | Diagonal and Vertical to Chord Connection
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.046 tons |
| Dimensions (Metric) | 0.870 x 0.450 x 0.000 m |
| Dimensions (Imperial) | 2.85 x 1.48 x 0 feet |
