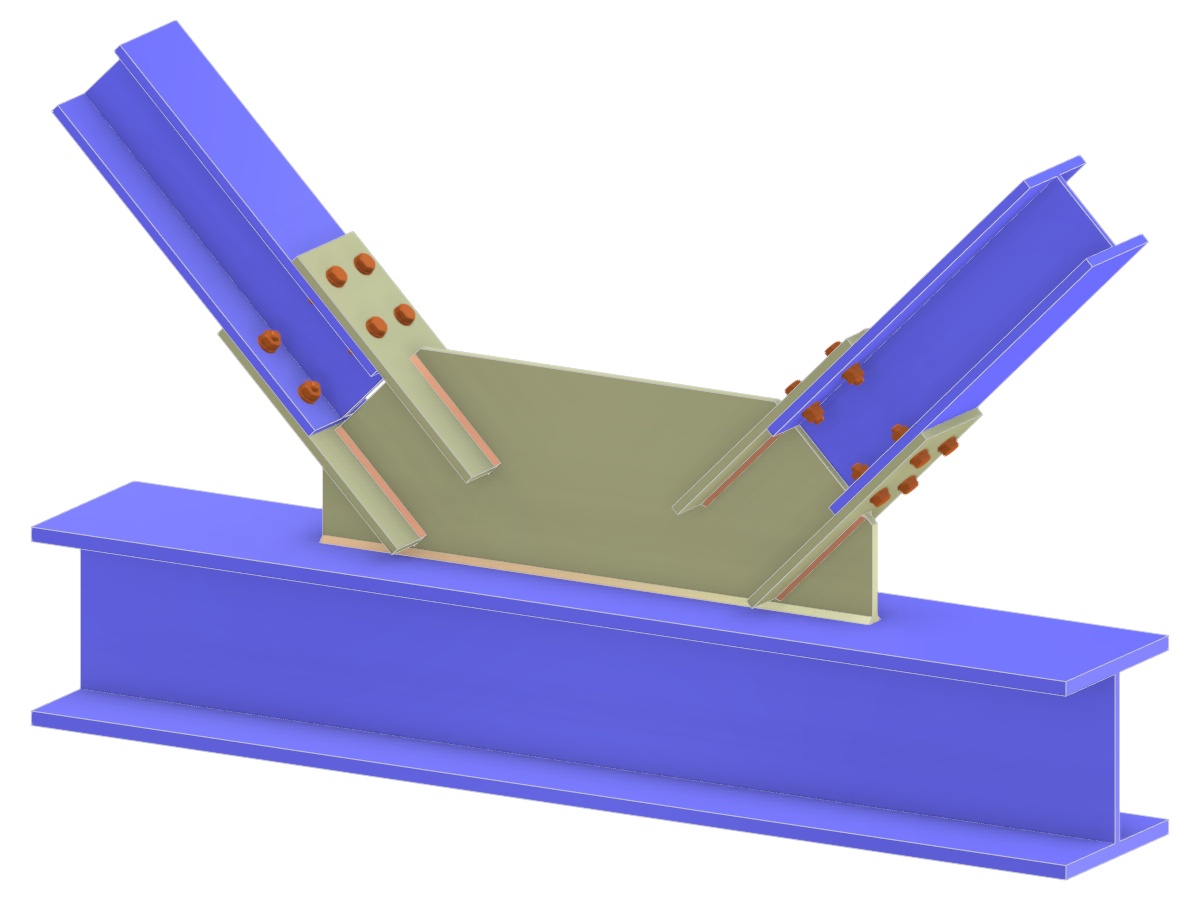

Model 005271 | Truss K-Joint | Diagonals to Chord Connection via Gusset Plate and Fin Plate
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.142 tons |
| Dimensions (Metric) | 1.400 x 0.620 x 0.000 m |
| Dimensions (Imperial) | 4.59 x 2.03 x 0 feet |
