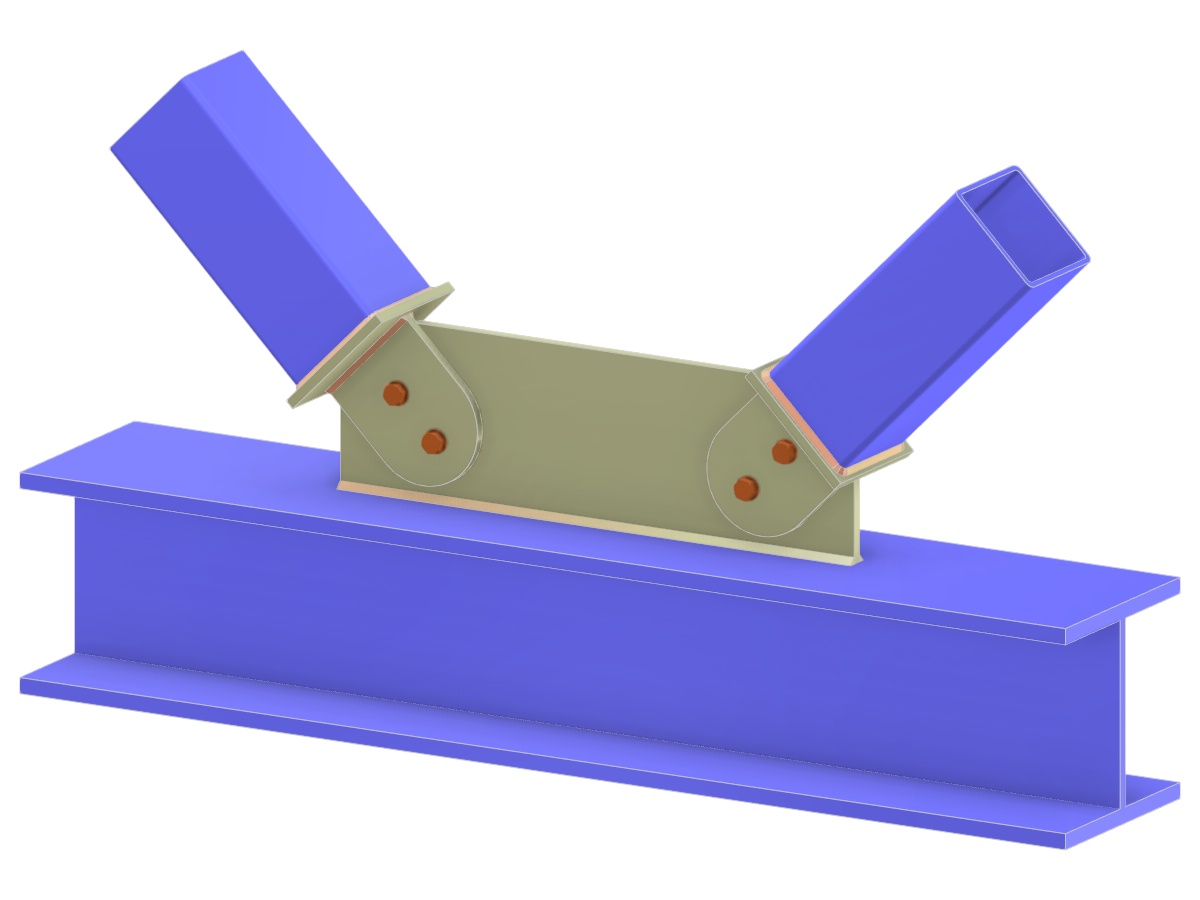

Model 005276 | Truss K-Joint | Diagonals to Chord Connection via Gusset Plate, Tongue Plate, and Cap Plate
3D Model
More About 3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.104 tons |
| Dimensions (Metric) | 1.160 x 0.470 x 0.000 m |
| Dimensions (Imperial) | 3.81 x 1.54 x 0 feet |
