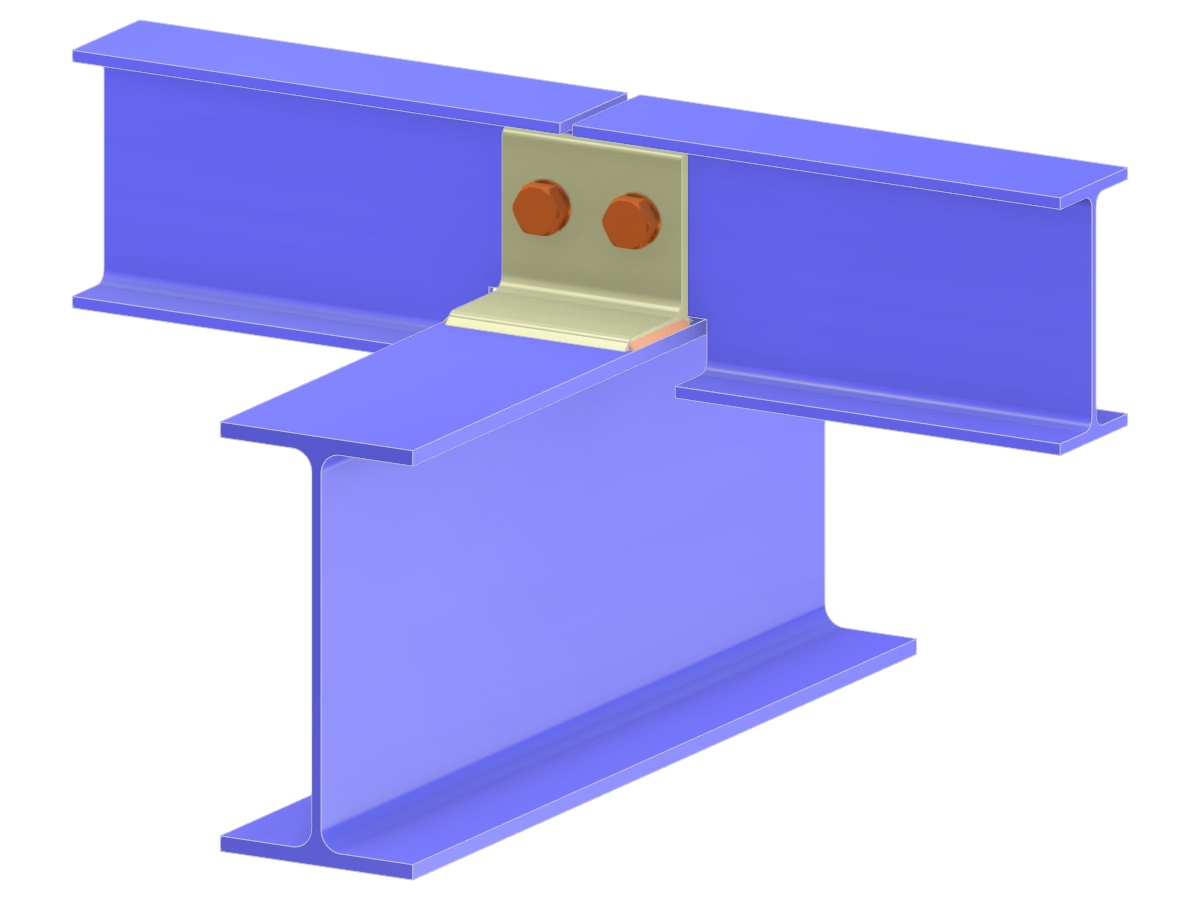

Model 005363 | Purlin to Roof Beam via Unequal Angle
3D Model
Specifications
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.103 tons |
| Dimensions (Metric) | 1.000 x 0.000 x 2.000 m |
| Dimensions (Imperial) | 3.28 x 0 x 6.56 feet |
