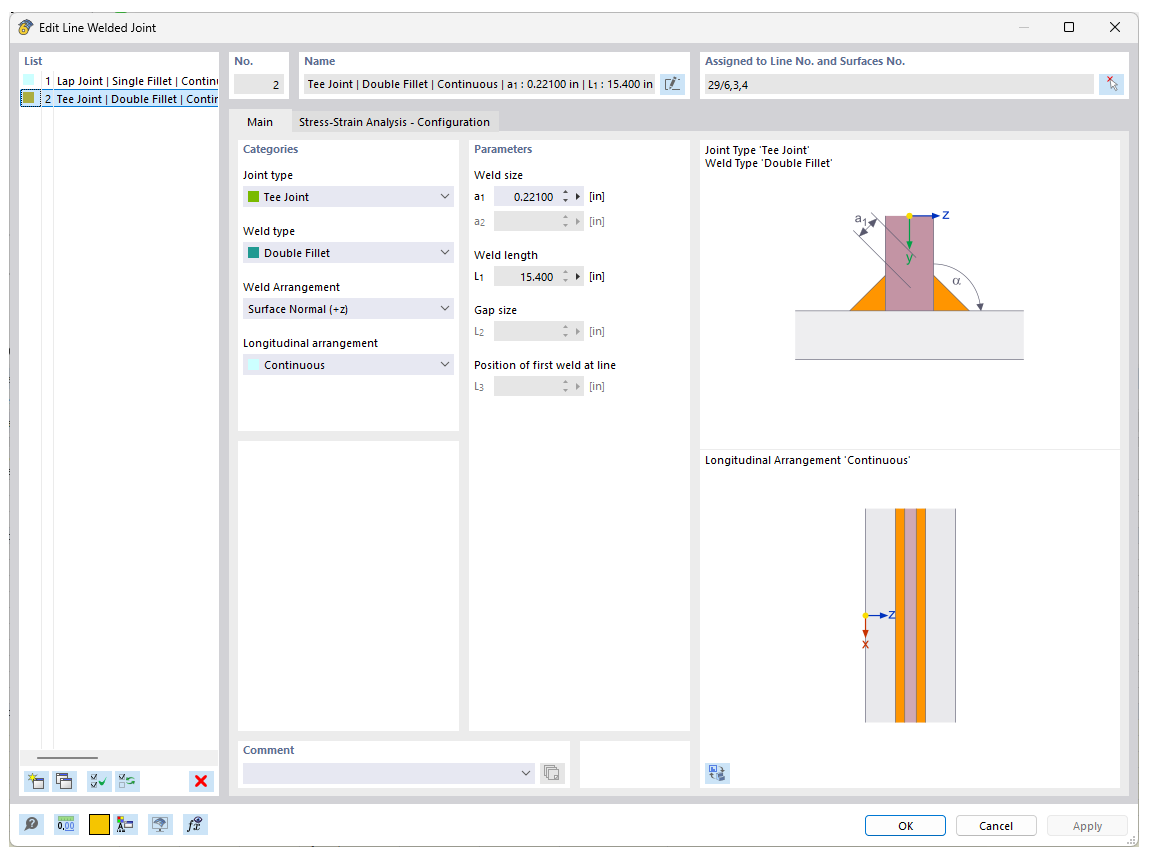

Line Welded Joint for Example J.2A

KB 001925 | RFEM 6 Fillet Weld Design Using AISC Standards

The image illustrates a line welded joint analysis in RFEM 6, focusing on fillet weld design according to AISC 360-22 standards. The Stress-Strain Analysis add-on is used to determine weld stresses between surfaces, allowing for the input of stress limits to calculate the stress ratio. This example highlights the application of AISC guidelines in structural engineering.
