System Sketch | Center of Single Column

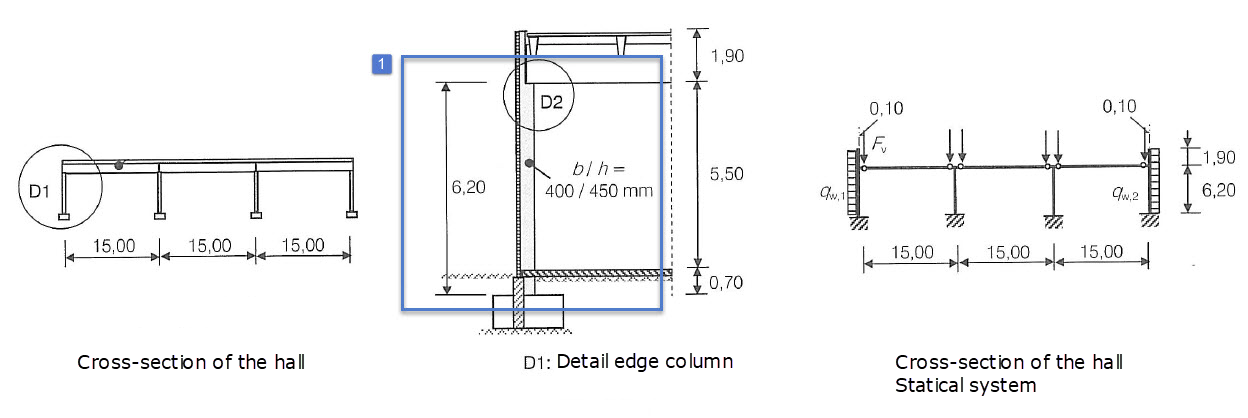

Sketch of the structural system with individual supports marked | Excerpt from [2]
The sketch shows an extract of a structural system, in which a single column, marked with Number 1, is highlighted. The display emphasizes the functional connection of the structural components in the system and represents essential nodal points of the structure.
