Model 005501 | Membrane Roof with Wind Load Analysis in RFEM
Model 005501 | Membrane Roof with Wind Loads from RWIND Simulation in RFEM

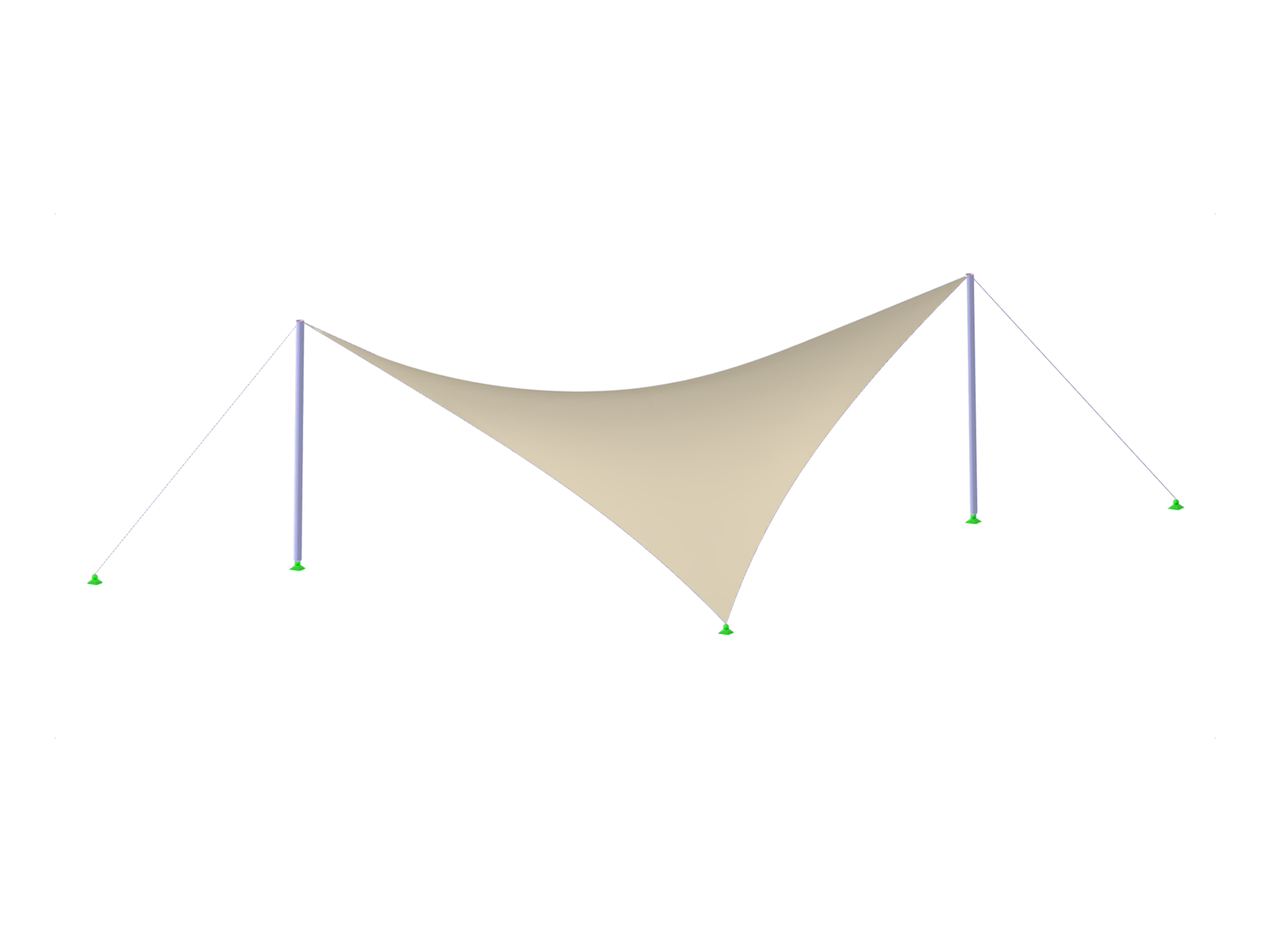

The image shows a membrane canopy modeled in the finite element software RFEM. The wind loads on the structure were determined using the wind simulation program RWIND and integrated into the model. This combination enables a precise analysis of the aerodynamic effects on the membrane structure, which is crucial for the design and optimization of lightweight canopy structures.
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 9 |
| Number of Members | 8 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0,530 t |
| Dimensions (Metric) | 16,000 x 5,000 x 16,000 m |
| Dimensions (Imperial) | 52.49 x 16.4 x 52.49 feet |
