Model 005506 | Optimization of Steel Hall in RFEM

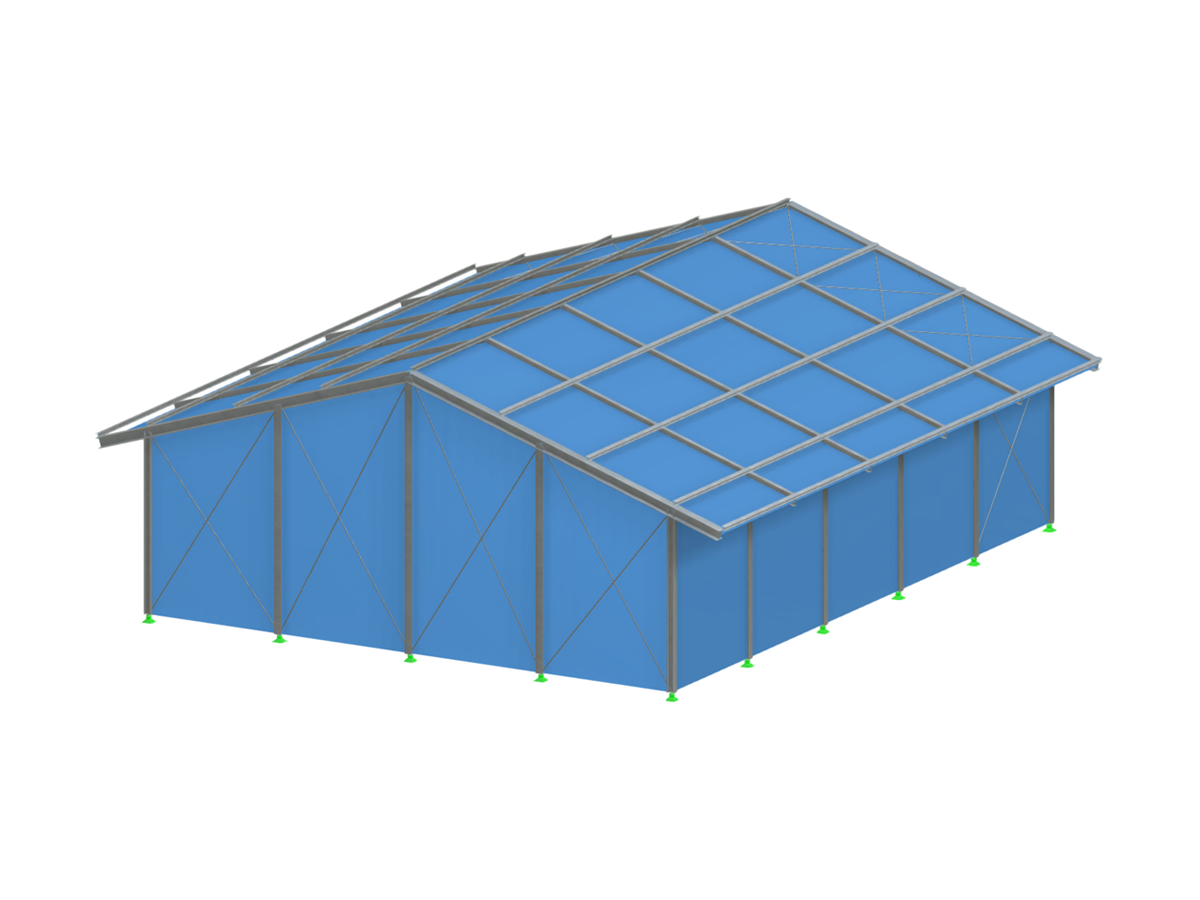

The image shows a steel hall processed with optimization settings in a structural design software. The optimization as a block indicates the use of functions to increase efficiency and save materials, as is possible in the Dlubal software. Such features help engineers minimize structural costs and maximize load-bearing capacity.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 76 |
| Number of Lines | 132 |
| Number of Members | 111 |
| Number of Surfaces | 8 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 16.691 tons |
| Dimensions (Metric) | 19,000 x 7,600 x 20,000 m |
| Dimensions (Imperial) | 62.34 x 24.93 x 65.62 feet |
