Model 005508 | Optimization of Timber Beams in Structural Analysis

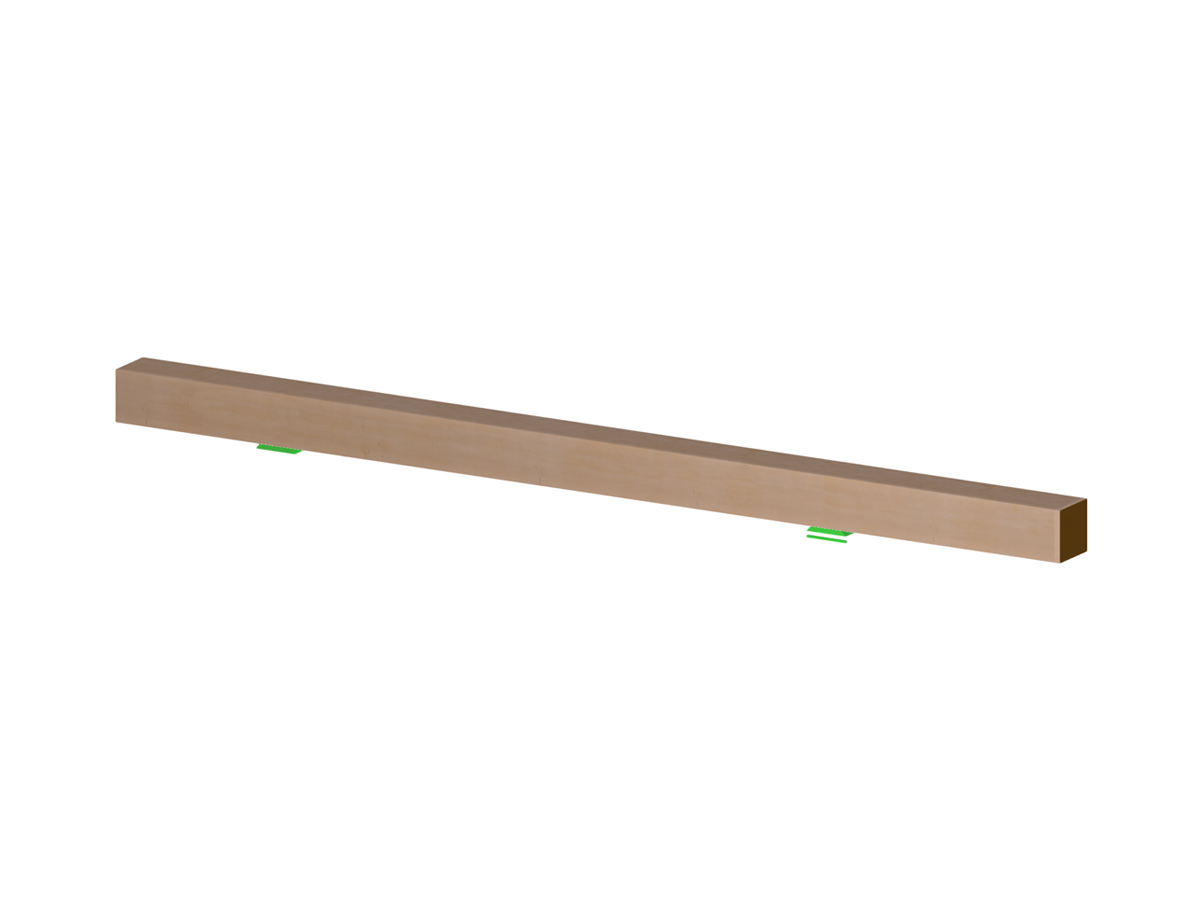

Model 005508 | Variable Timber Beam with Optimization Settings in Structural Analysis
The image shows a variable timber beam that was modeled with specific optimization settings. These settings allow the beam geometry and material properties to be adjusted in order to maximize structural efficiency. Such optimizations are crucial in structural design in order to reduce material costs and increase load-bearing capacity. Dlubal Software offers specialized tools for this purpose that enable precise analysis and adjustment.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 0.227 t |
| Dimensions (Metric) | 6.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
